XK L1100 10,000 lbs Car Lift 2 Post overhead Car Auto Truck Hoist 220V OR 110V
Product Specifications
The XK USA L1100 is a heavy-duty 10,000 lb. Overhead Clear-Floor Lift designed for high-performance automotive service. Featuring a powerful 3HP motor and a symmetrical arm assembly, this hoist is engineered to handle everything from passenger cars to heavy-duty trucks and SUVs. Its overhead design ensures a completely clear floor, allowing you to move toolboxes, oil drains, and equipment under the vehicle without obstruction.
KEY FEATURES

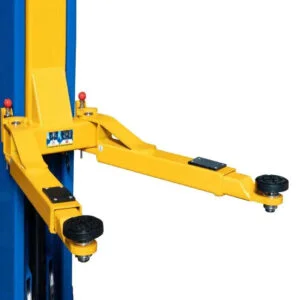

Symmetrical 2-Stage Arms: Equal-length front and rear arms (30.7" to 48") provide a balanced and stable center of gravity for a wide range of vehicles.
Superior Safety System: Equipped with a double-point manual safety lock release and automatic arm restraints that lock into place as soon as the lift begins to rise.
Overhead Protection: Includes an up-limit switch to protect the hydraulic cylinders and an overhead shut-off bar to prevent vehicle damage.
Heavy-Duty Construction: Built with 3/16" column steel and a thickened 5/8" base plate for maximum structural integrity.

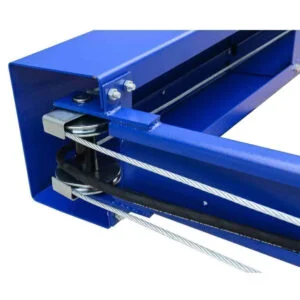

Smooth Operation: Features ultra-high molecular self-lubricating nylon sliders and oversized 4.56" pulleys to reduce cable stress and ensure quiet, fluid movement.
Advanced Hydraulics: A built-in relief valve in the power pump prevents overloading, protecting both the machine and the operator.
TECHNICAL SPECIFICATIONS
Model: L1100 (XK USA)
Lifting Capacity: 10,000 lbs
Max Lift Height: 78-7/8"
Overall Height: 145-5/8" (Approx. 12.1 ft)
Overall Width: 133-1/4"
Drive-Thru Clearance: 100"
Lifting Time: 20–60 Seconds
Power Requirement: 220V / 1PH / 3HP Motor
Shipping Weight: 1,460 lbs
INSTALLATION & FLOOR REQUIREMENTS
To ensure safe operation, the following site specifications are required:
Concrete: Minimum 4" thickness of 3,000 PSI reinforced concrete. Concrete must be cured for at least 30 days.
Ceiling Height: Ensure a minimum clearance of 146" to accommodate the overhead structure.
Power: Requires a dedicated 220V, 30 Amp single-phase grounded source.
Hardware: Anchor bolts and mounting hardware are included with the unit.
SHIPPING & DELIVERY
UNITED STATES: Free Residential Shipping included (typically 5 to 8 business days).
COMPLETE ACCESSORY KIT: Each unit comes standard with a full set of truck adapters, drop-in lifting pads, and rubber door guards to protect customer vehicles.
INDUSTRIAL FINISH: Powder-coated for corrosion resistance and long-term durability in professional shop environments.
Why Choose the XK USA L1100?
The L1100 is the "workhorse" of the 10,000 lb. class. It offers commercial-grade steel thickness and a high-performance 3HP motor that outclasses many economy lifts. If you are looking for a clear-floor solution that combines fast lifting speeds with rigid safety standards, the XK USA L1100 is the ideal choice for your facility.
