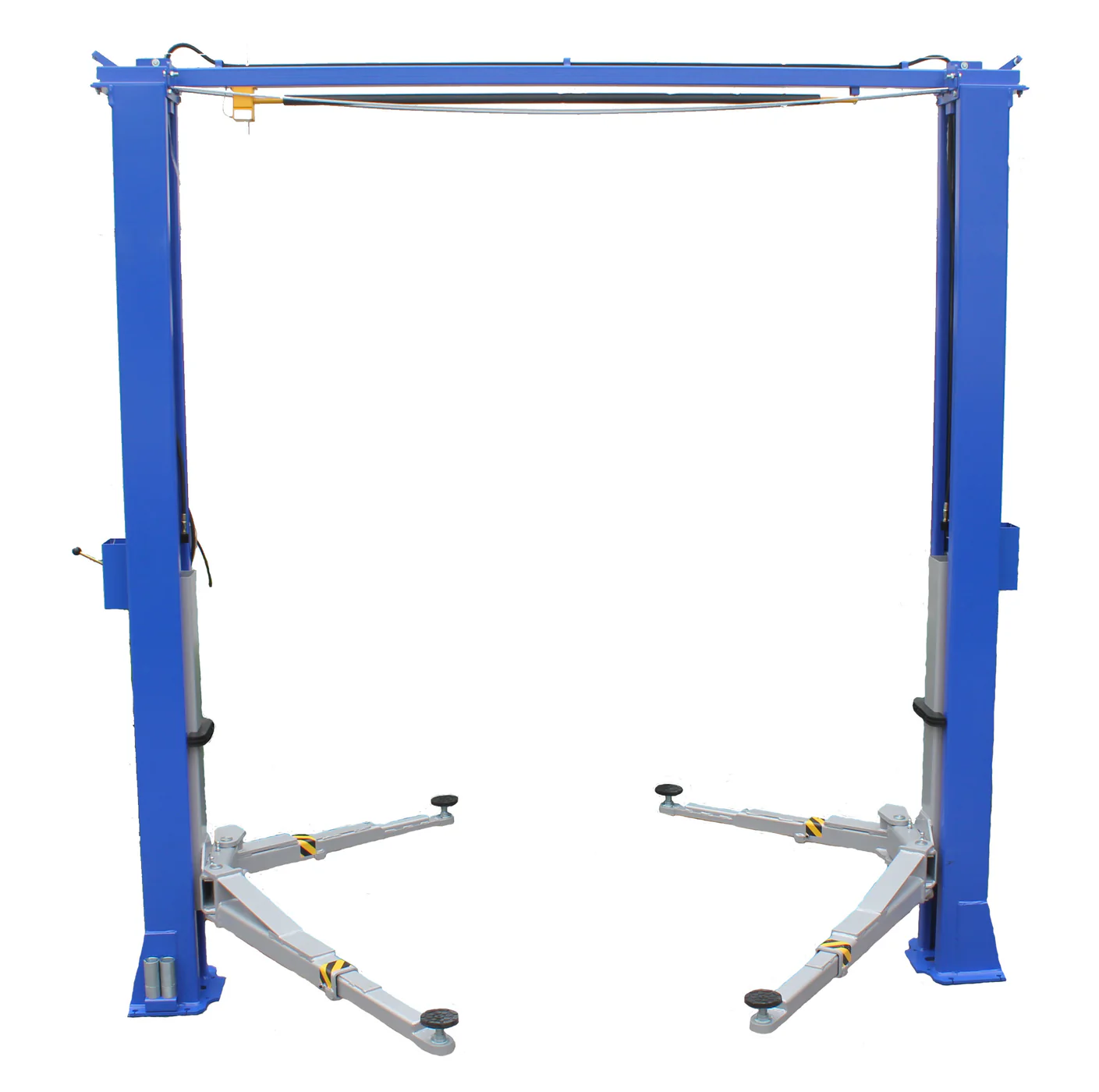

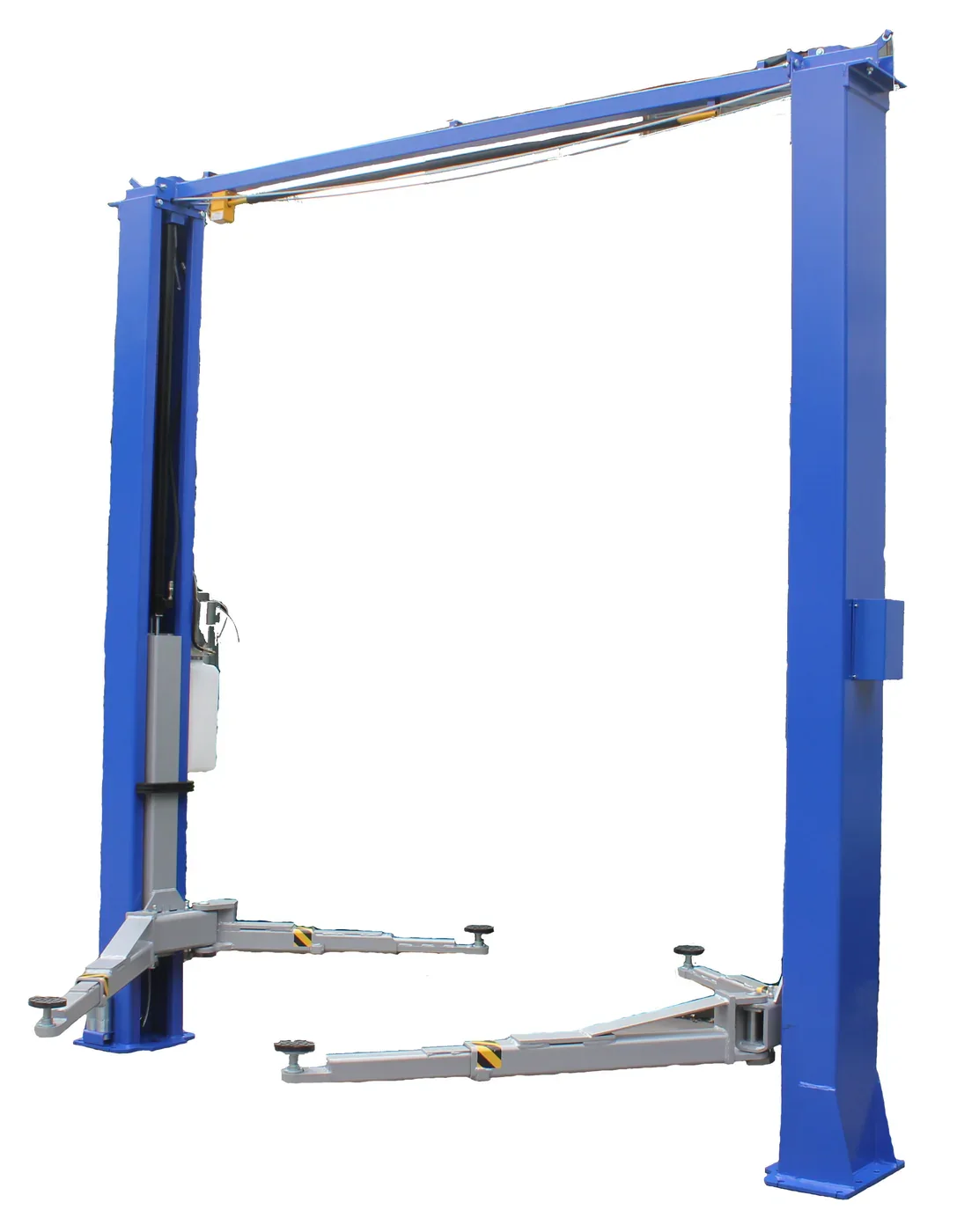

Tuxedo TP11KC-DX Bi-Symmetric Two Post Lift
Product Specifications
The Tuxedo TP11KC-DX is a powerhouse of versatility, engineered to deliver professional-grade lifting with a massive 11,000 lb. capacity. What sets this model apart is its Bi-Symmetric™ arm design, offering you the "best of both worlds": the ability to load vehicles in either an asymmetric or symmetric configuration depending on the weight balance. Whether you’re lifting a compact car or a heavy-duty pickup, the TP11KC-DX is designed to be the most used and reliable tool in your shop.
KEY FEATURES

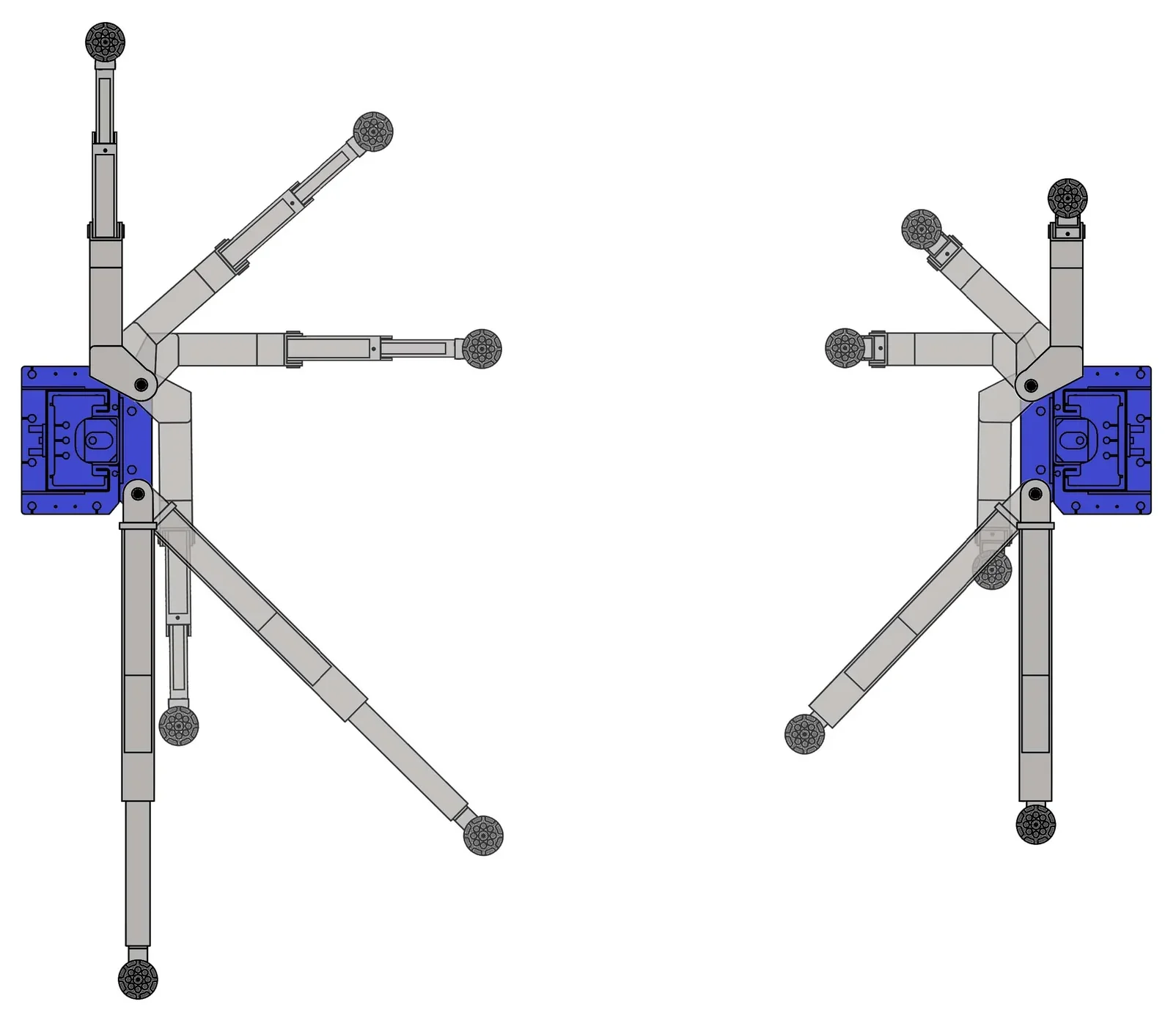

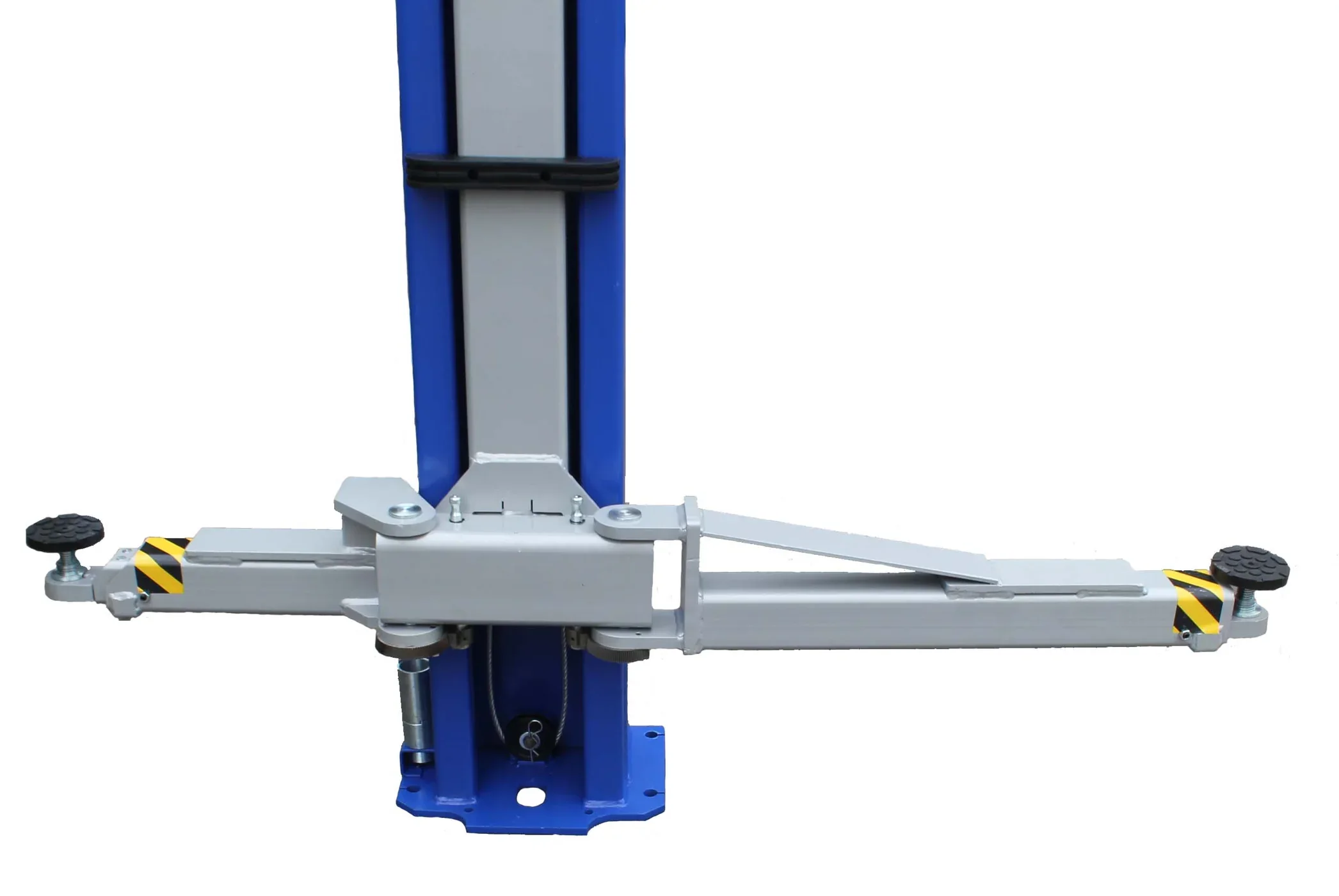

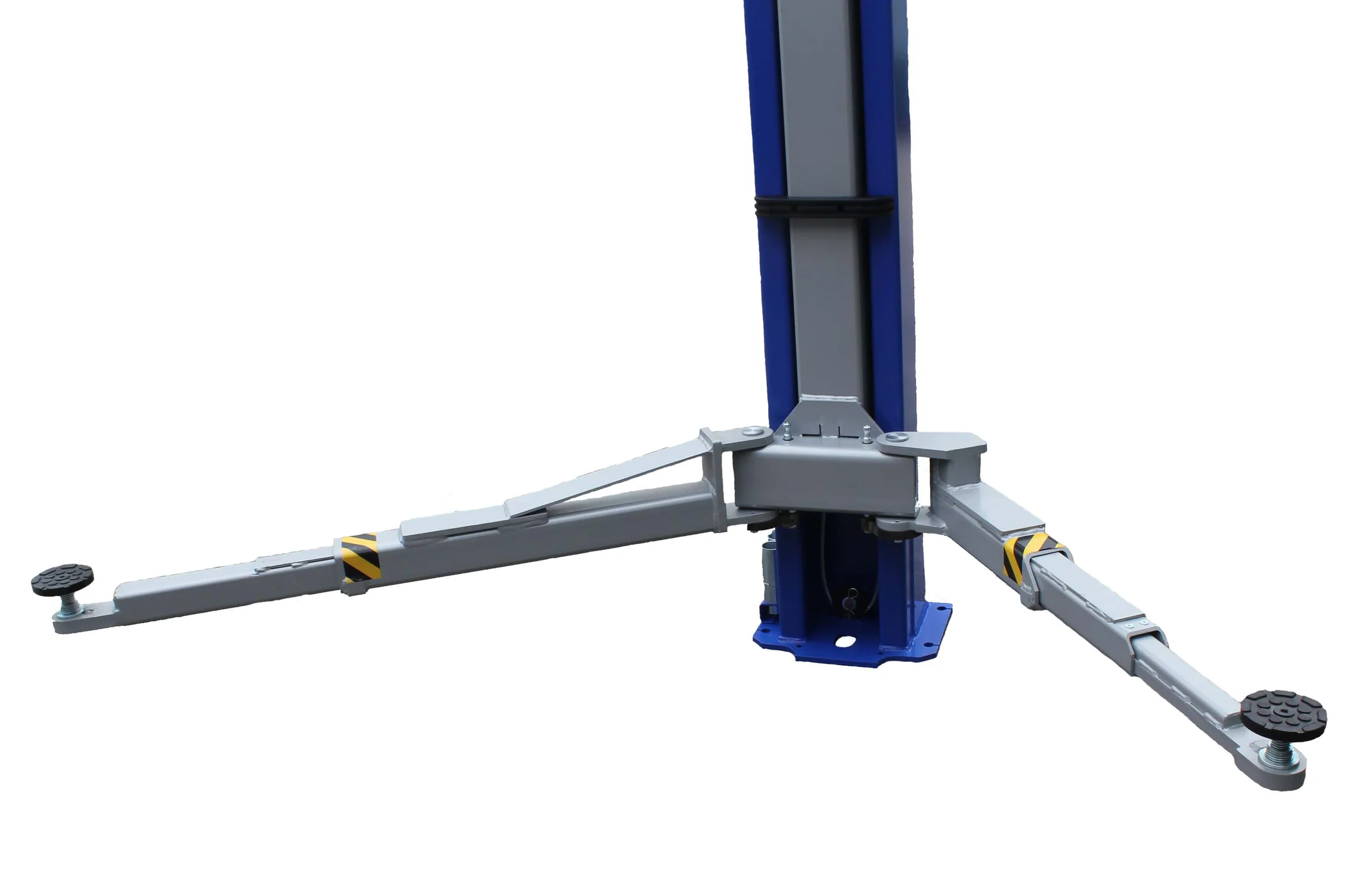

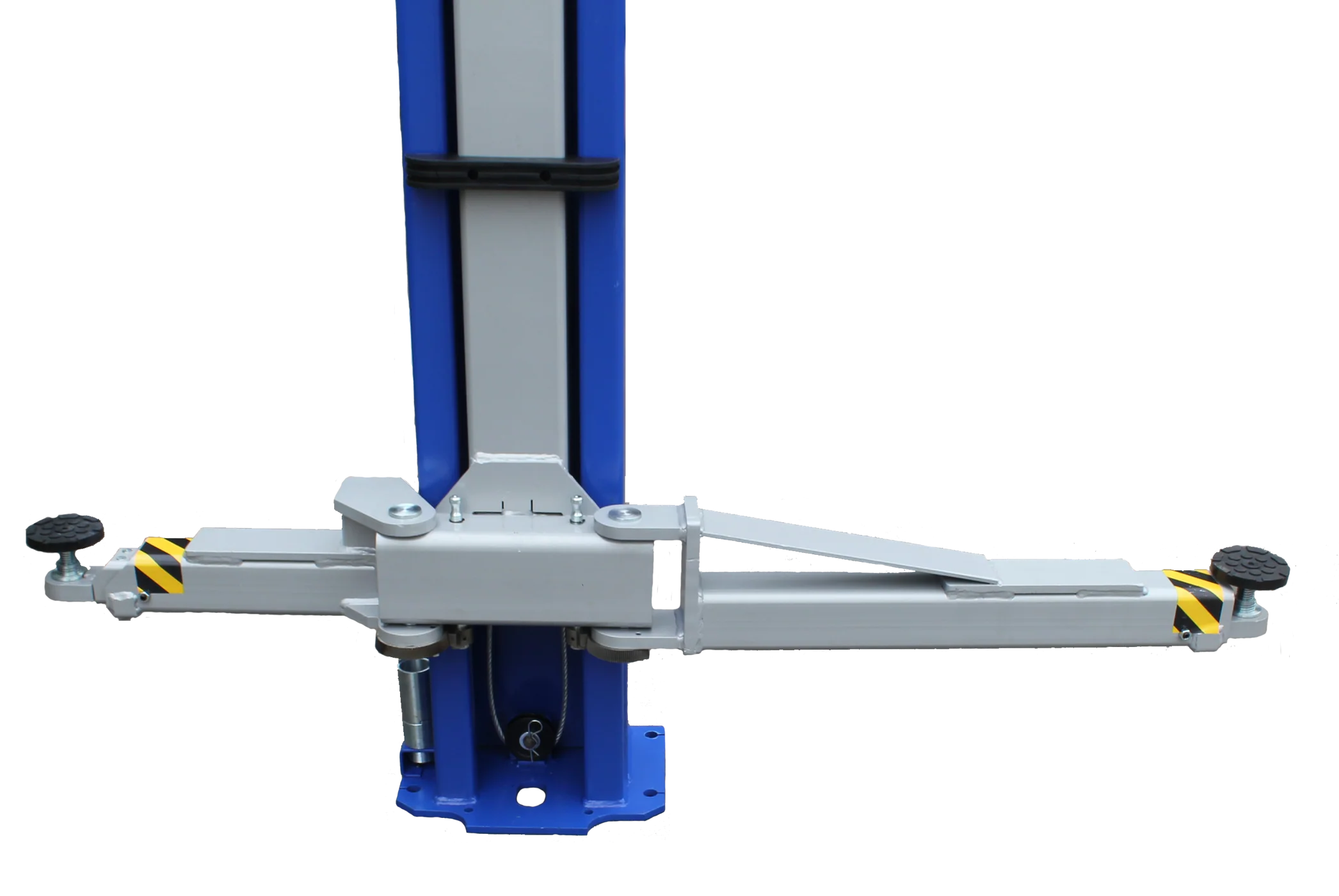

Bi-Symmetric™ Configuration: Highly versatile arm design with 3-stage front arms, allowing you to position vehicles for perfect balance every time.
Direct Drive Technology: Features dual direct-drive hydraulic cylinders for a smoother, faster lift with fewer moving parts compared to chain-driven models.
Single-Point Lock Release: Simplifies the lowering process, allowing the operator to disengage all safety locks from a single column.

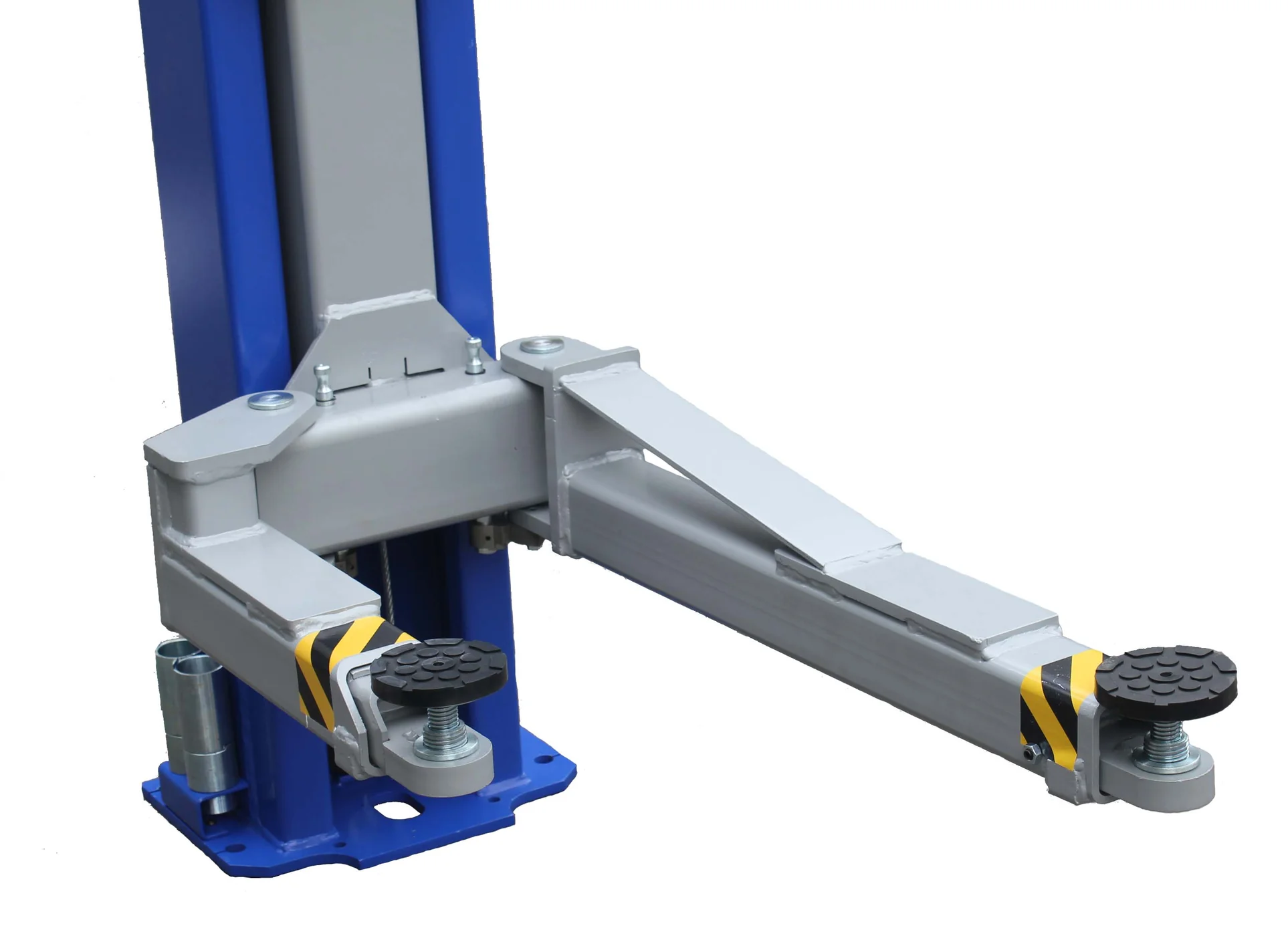

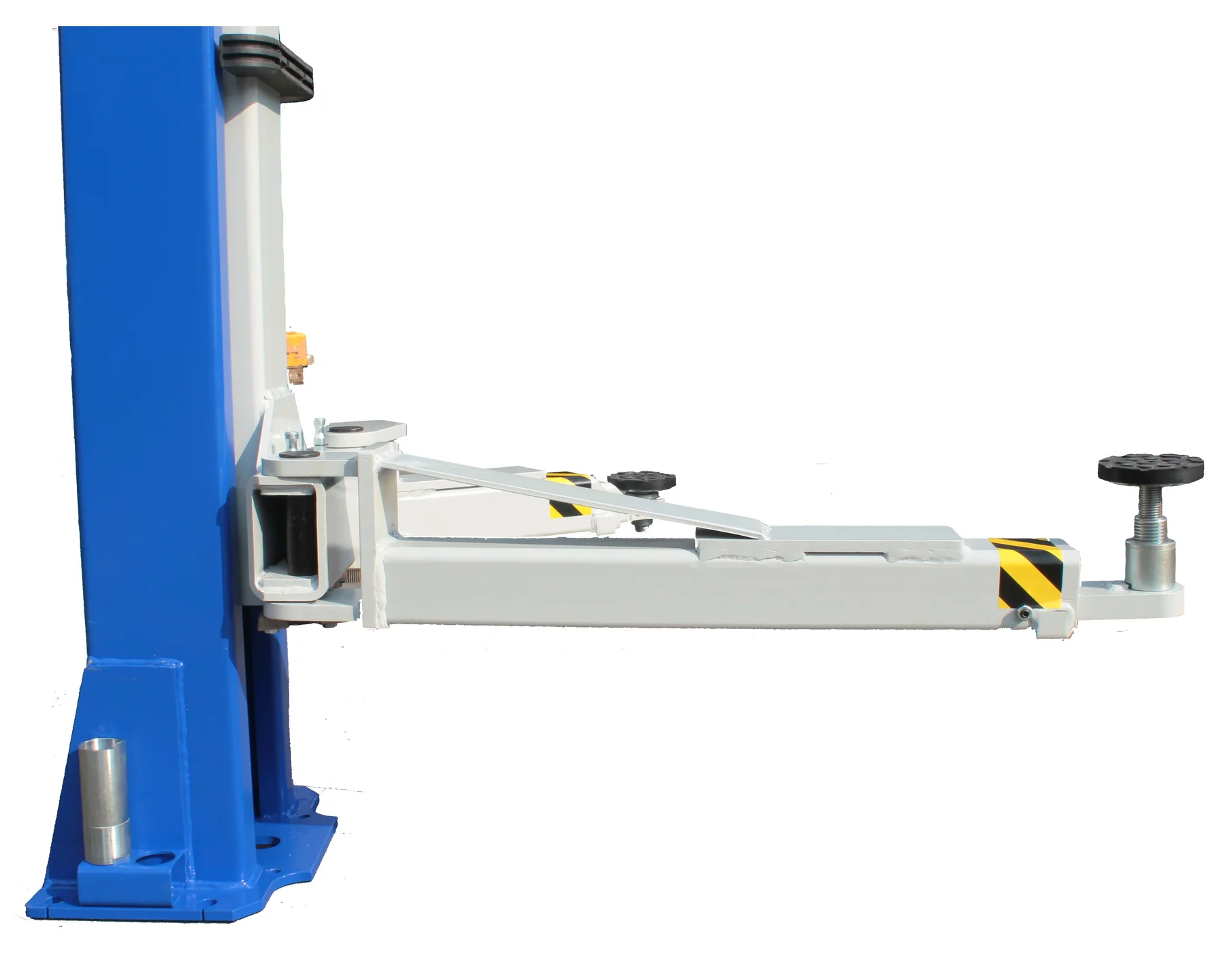

Low-Profile Design: Equipped with low-profile arms and spin-up pads to accommodate sports cars, while the included 2" and 4" stackable adapters handle tall truck frames.
Maximum Protection: Includes heavy-duty rubber door guards to protect customer vehicles and a durable powder-coat finish for long-lasting shop wear.
Symmetric Columns: Provides a wide drive-thru clearance and a clean-floor design for unobstructed movement under the vehicle.

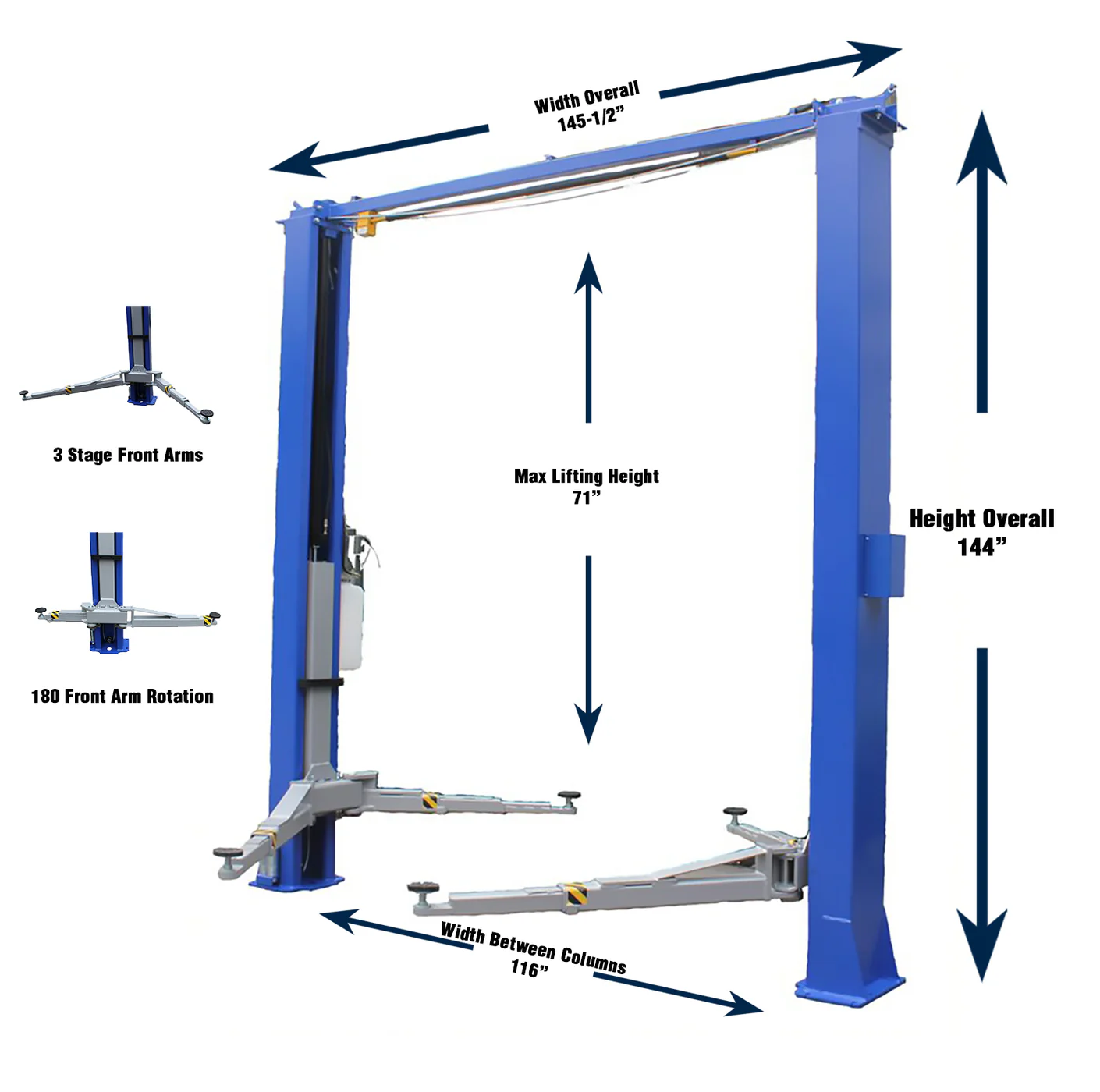

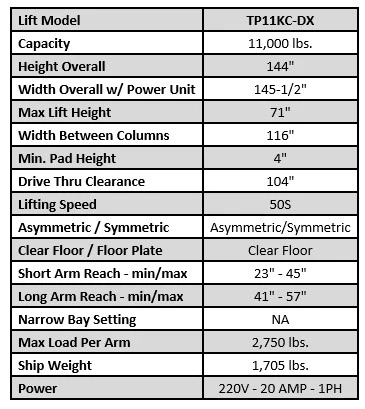

TECHNICAL SPECIFICATIONS
Model: TP11KC-DX
Lifting Capacity: 11,000 lbs
Cylinder Type: Dual Direct-Drive
Front Arm Design: 3-Stage Bi-Symmetric
Lock Release: Single-Point Manual
Included Adapters: 2" and 4" Stackable Truck Adapters
Finish: Industrial Grade Powder-Coat
Power Requirement: 220V / 20 Amp / 1PH
SHIPPING & INSTALLATION
UNITED STATES: Freight shipping with specialized crating for heavy equipment. This 11k lift is a professional-grade unit that requires a solid concrete foundation for safe installation.
UNITED KINGDOM: Secure international transit. We ensure that all direct-drive components and the clear-floor overhead assembly are protected for long-haul shipping.
HEAVY-DUTY READY: Specifically designed for shops that handle a mix of light passenger cars and heavy work trucks.
Why Choose the Tuxedo TP11KC-DX?
If you only have space for one lift, this is it. The TP11KC-DX eliminates the "asymmetric vs. symmetric" debate by giving you the flexibility to handle both. Combined with Direct Drive power and an 11,000 lb. rating, it provides the extra muscle and adaptability needed for a modern, high-volume service garage.
