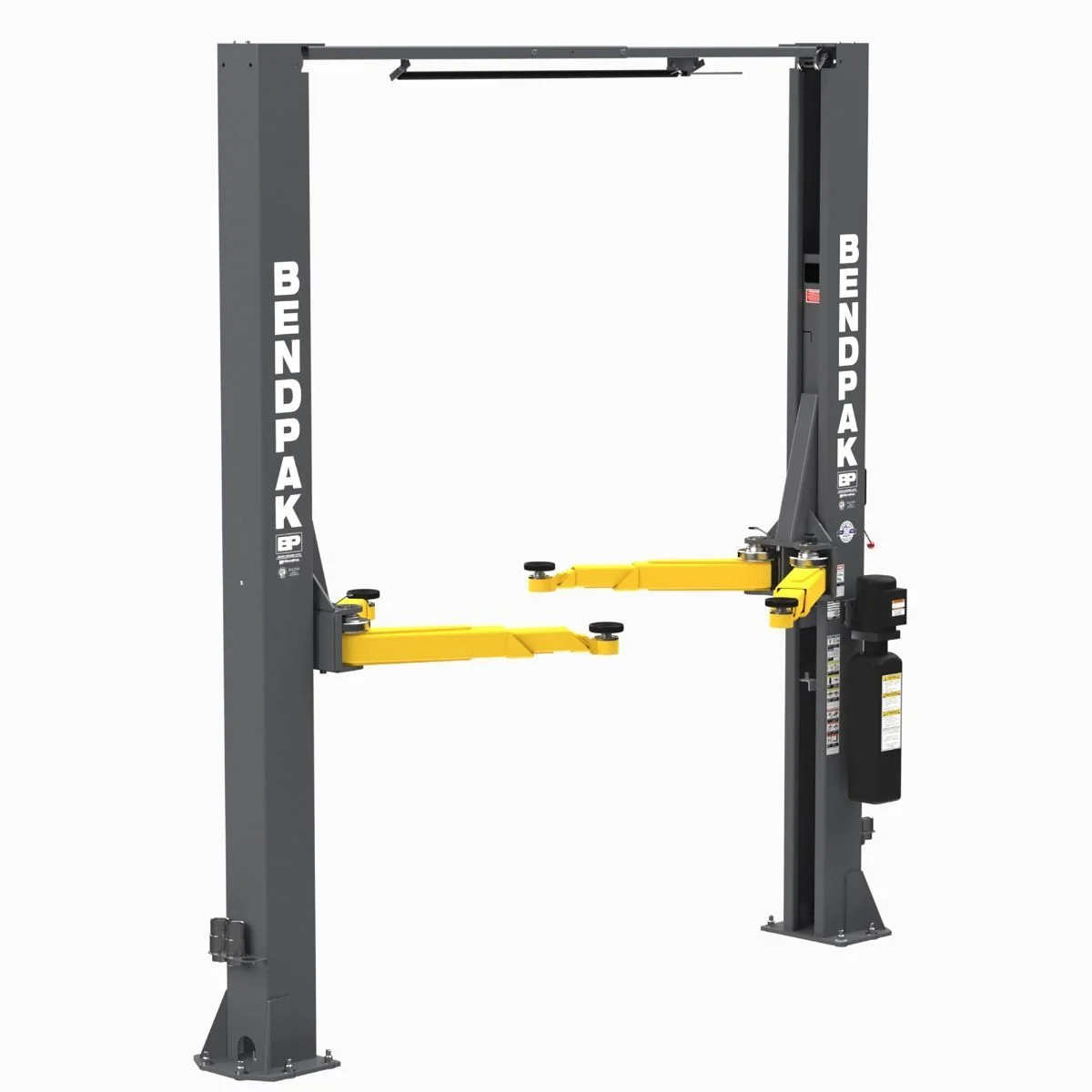

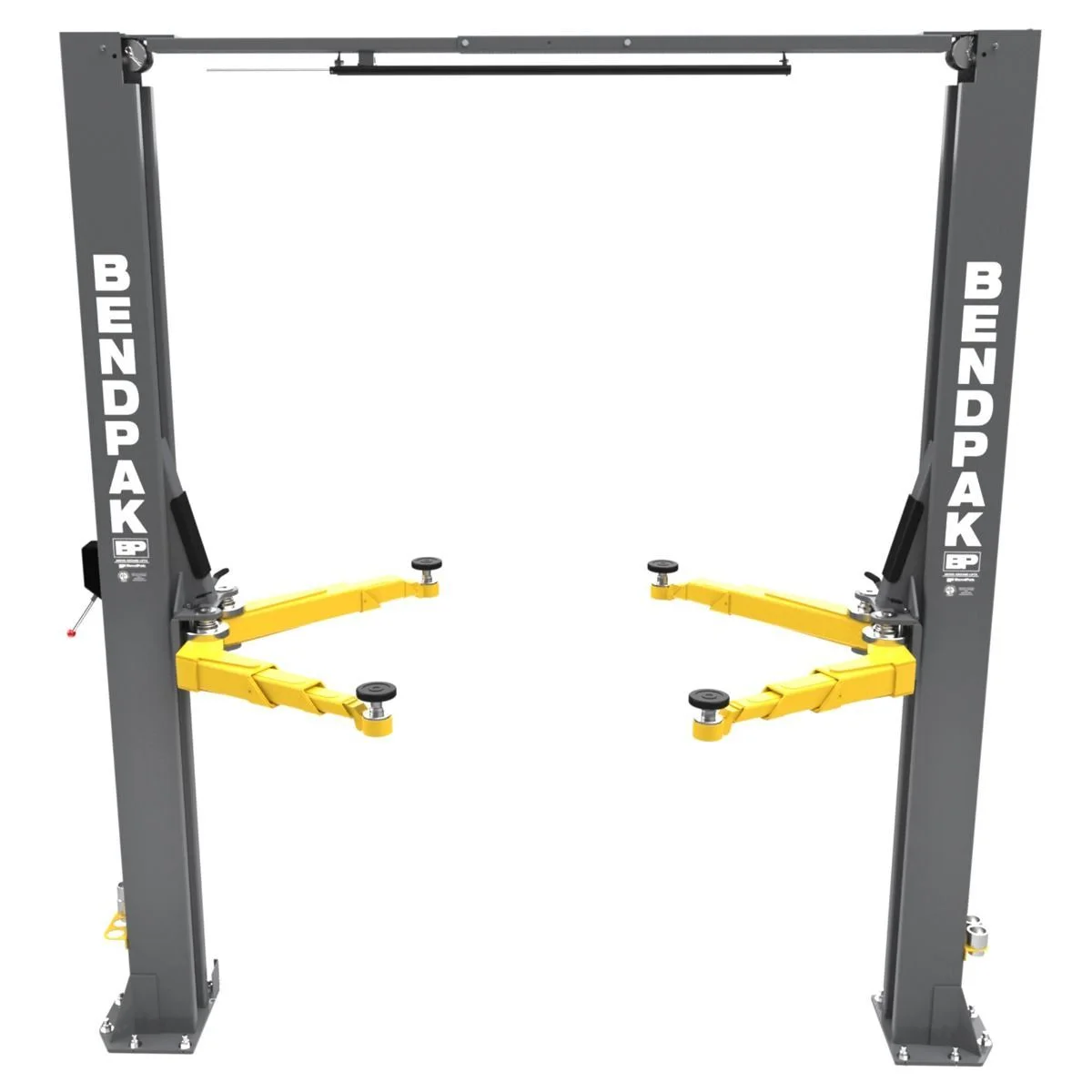

BendPak 10AP 10,000 lb. 2 Post Lift
Product Specifications
The BendPak 10AP is not just a lift; it is a new paradigm in lifting technology. As part of the revolutionary AP Series, this 10,000 lb. capacity lift combines the best features of every 2-post lift ever made into one patented, high-performance package. Engineered for extreme use and maximum safety, the 10AP allows for wide or narrow installation and features the exclusive Bi-Metric™ arm design, giving you the flexibility to load vehicles symmetrically or asymmetrically with ease.
+2
KEY FEATURES

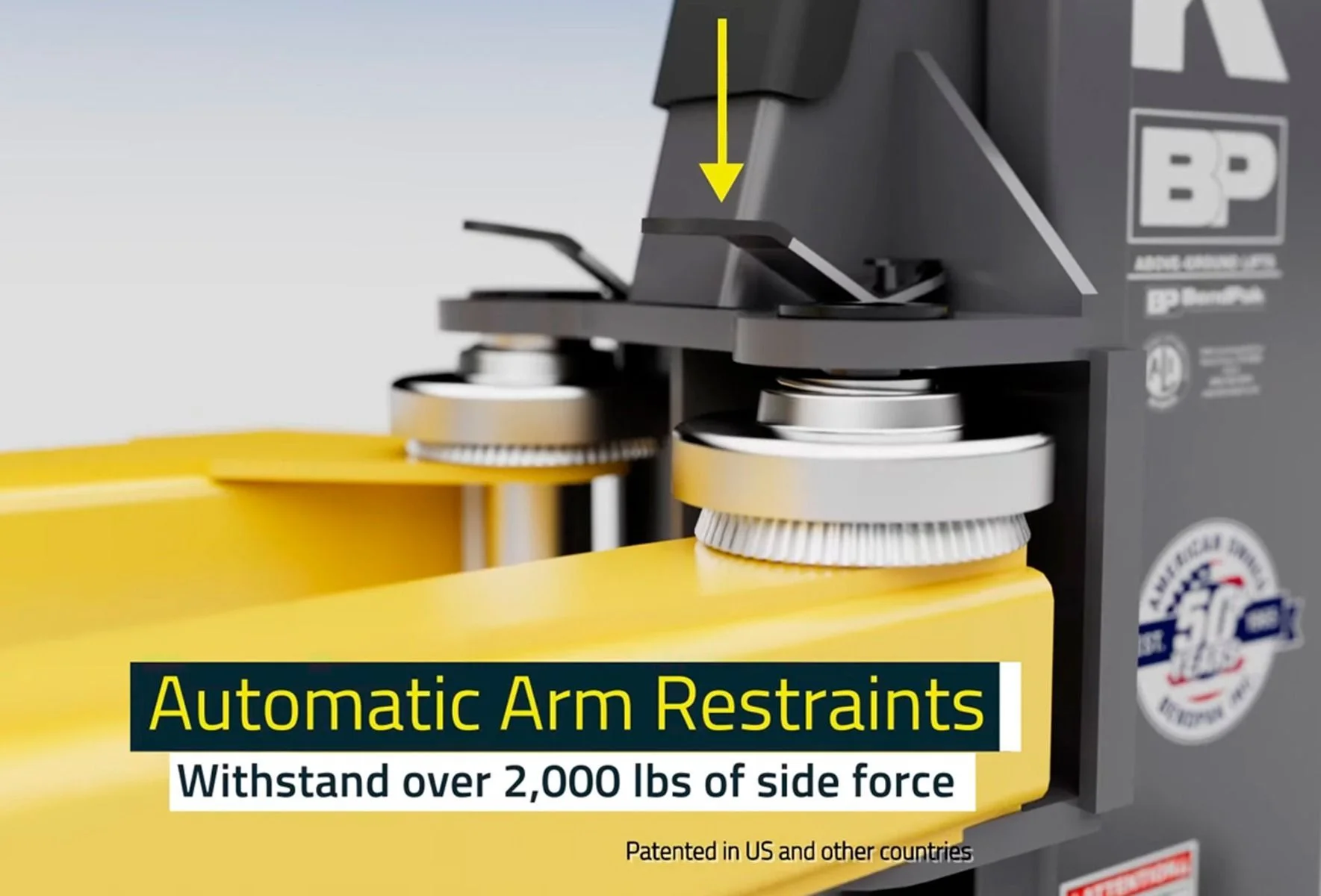

Patented ASARS (Automatic Swing Arm Restraint System): A revolutionary safety feature that withstands over 2,000 lbs. of force, preventing unplanned vehicle movement with a 360° forged-steel grip.

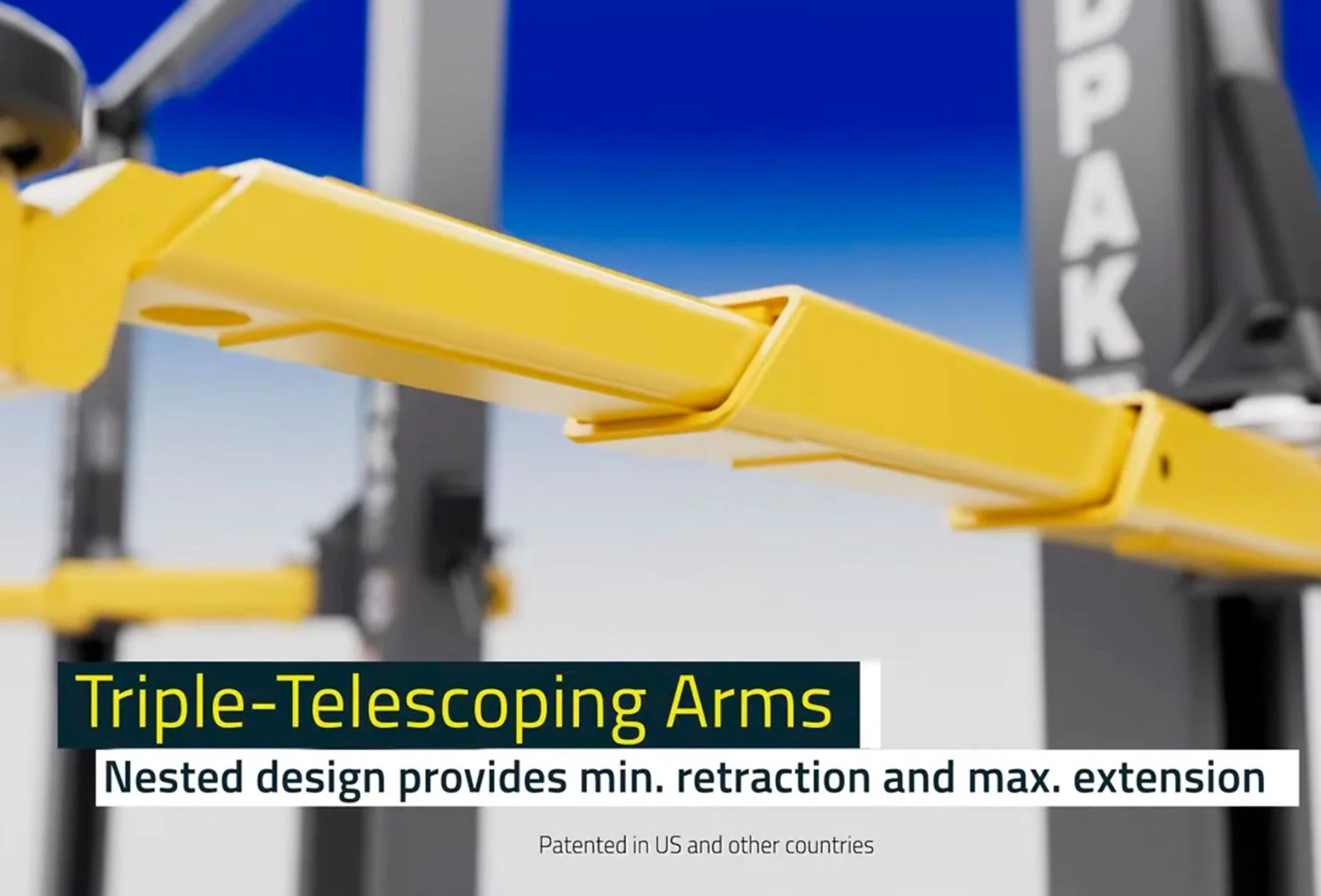

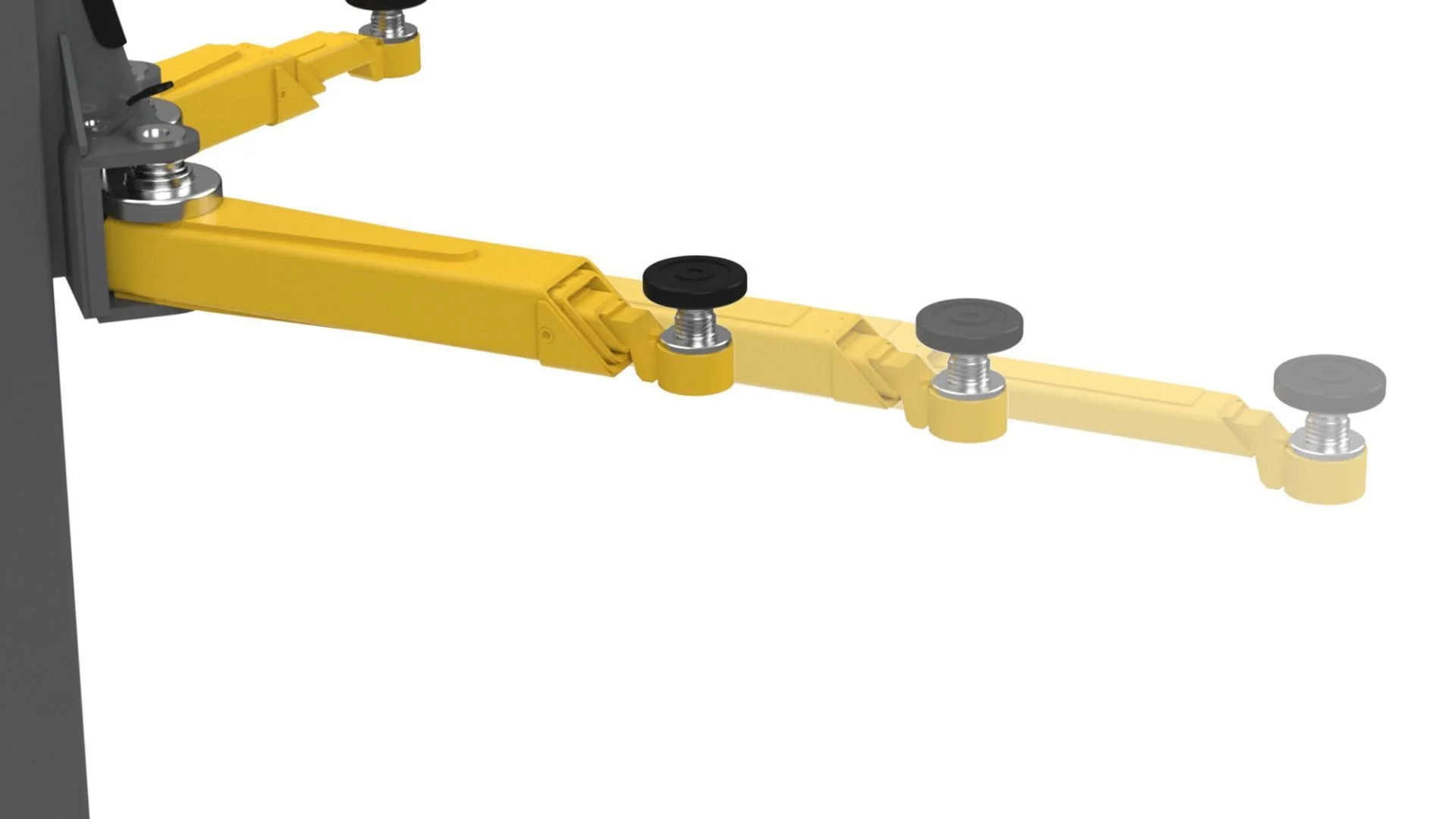

Triple-Telescoping Nested Arms: Patented arms that retract shorter and extend farther than any competitor, ensuring you can reach the lift points on everything from compact electric cars to long-wheelbase trucks.
Bi-Metric™ Versatility: Switch between symmetric and asymmetric configurations instantly. One lift does it all, maximizing your shop's productivity.

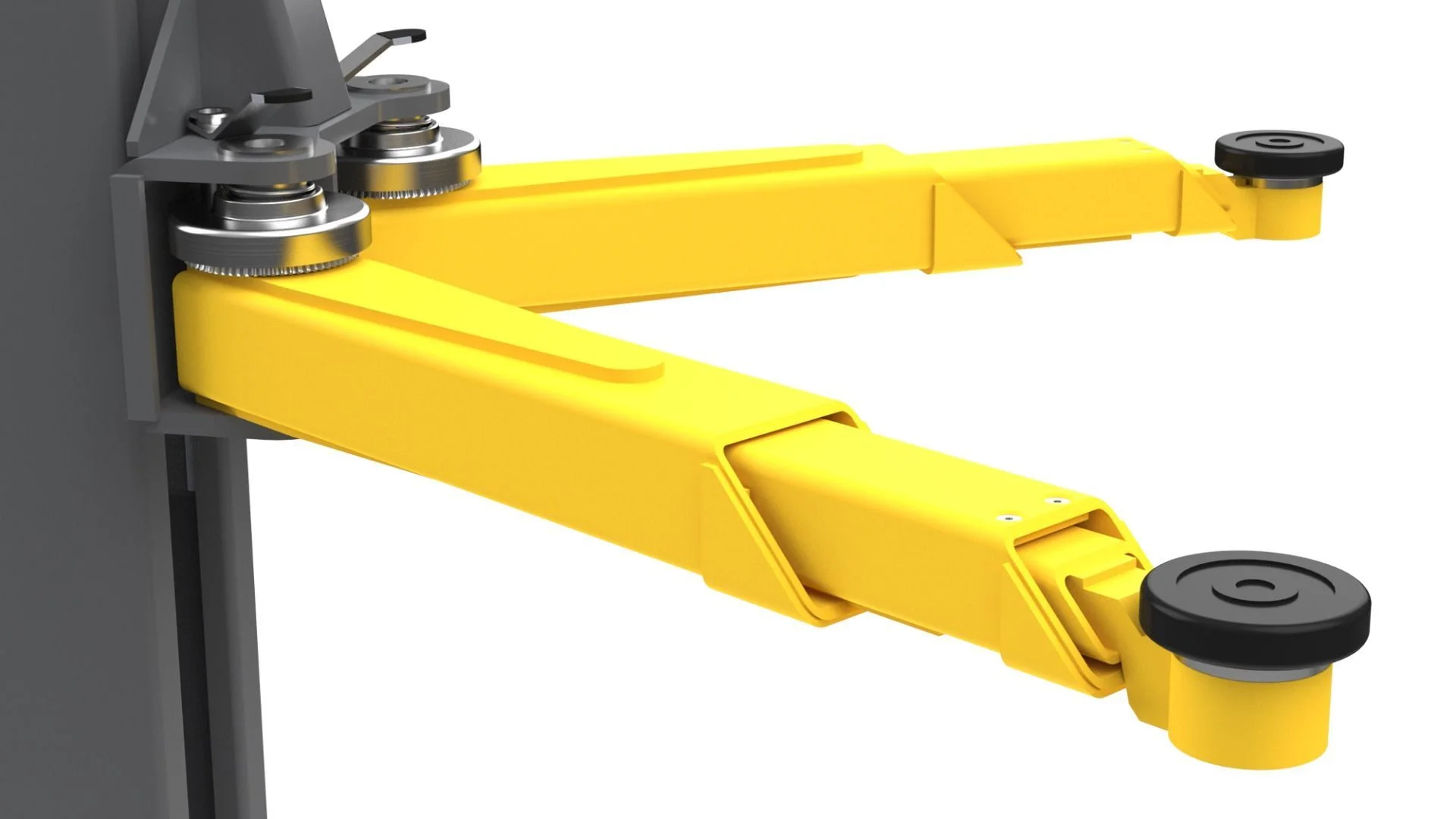

Low-Pro™ Swing Arms: Features a dropped-end design to provide superior clearance for lowered sports cars, protecting side skirts and ground effects.
Direct-Drive Technology: Dual hydraulic direct-drive cylinders provide a faster, smoother lift while reducing maintenance costs.
Single-Point Safety Release: A patented, ergonomic lock system that can be disengaged with a single finger for effortless operation.
ALI Certified: Fully tested and certified by the Automotive Lift Institute (ALI) to meet the highest safety and performance standards in the world.
TECHNICAL SPECIFICATIONS
Model: BendPak 10AP
Lifting Capacity: 10,000 lbs.
Max Rise (with Pad): 72.25"
Overall Height: 145"
Overall Width: Configurable at 135" or 145"
Drive-Thru Clearance: 92" or 102"
Arm Reach (Front): 24.5" – 50"
Arm Reach (Rear): 32" – 59.25"
Power Requirement: 220V / 60Hz / 1PH
Shipping Weight: 1,729 lbs.
SHIPPING & EXCLUSIVE EXTRAS
UNITED STATES: Direct freight shipping. This unit is protected by multiple U.S. patents, ensuring you are getting an authentic, innovative BendPak product.

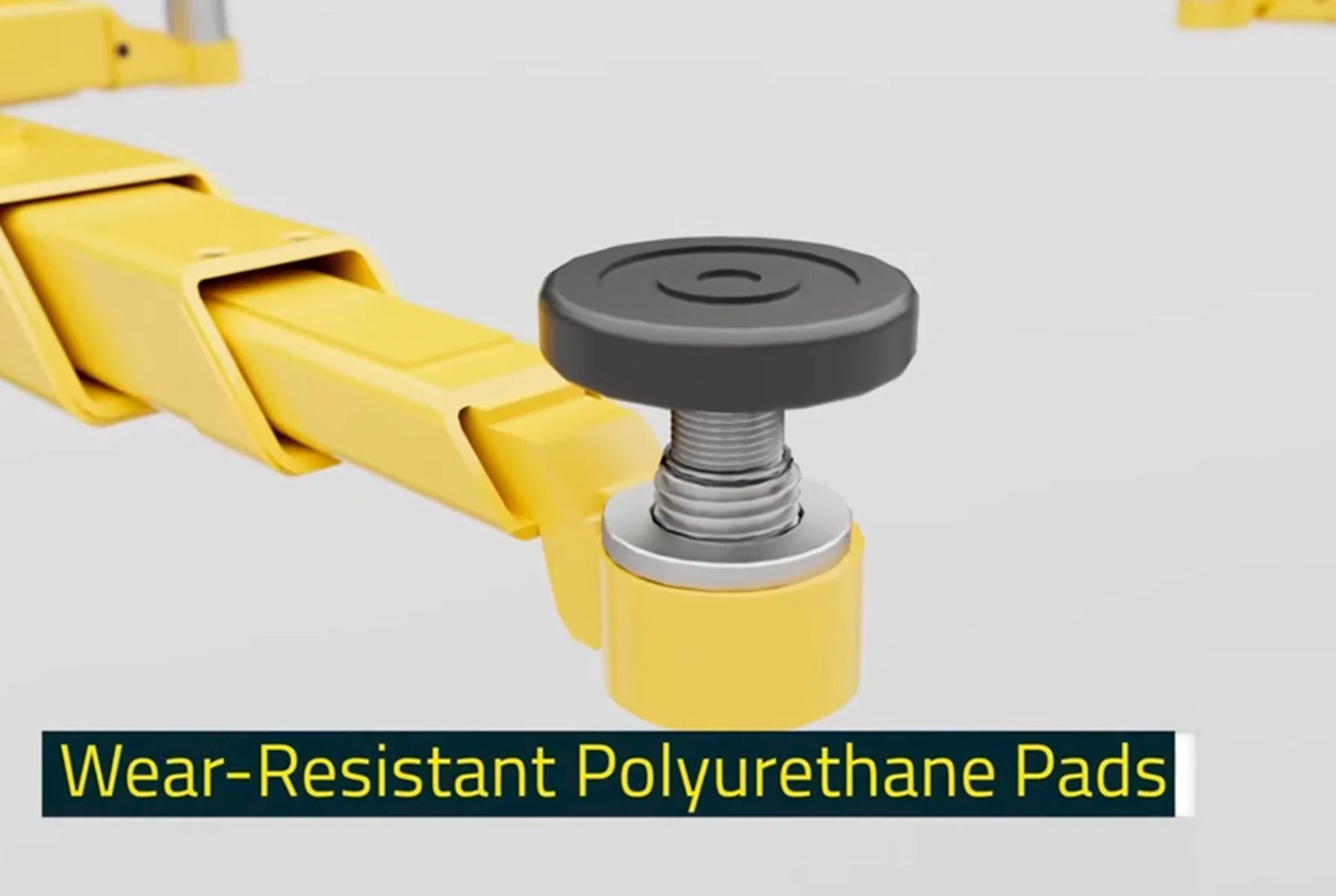

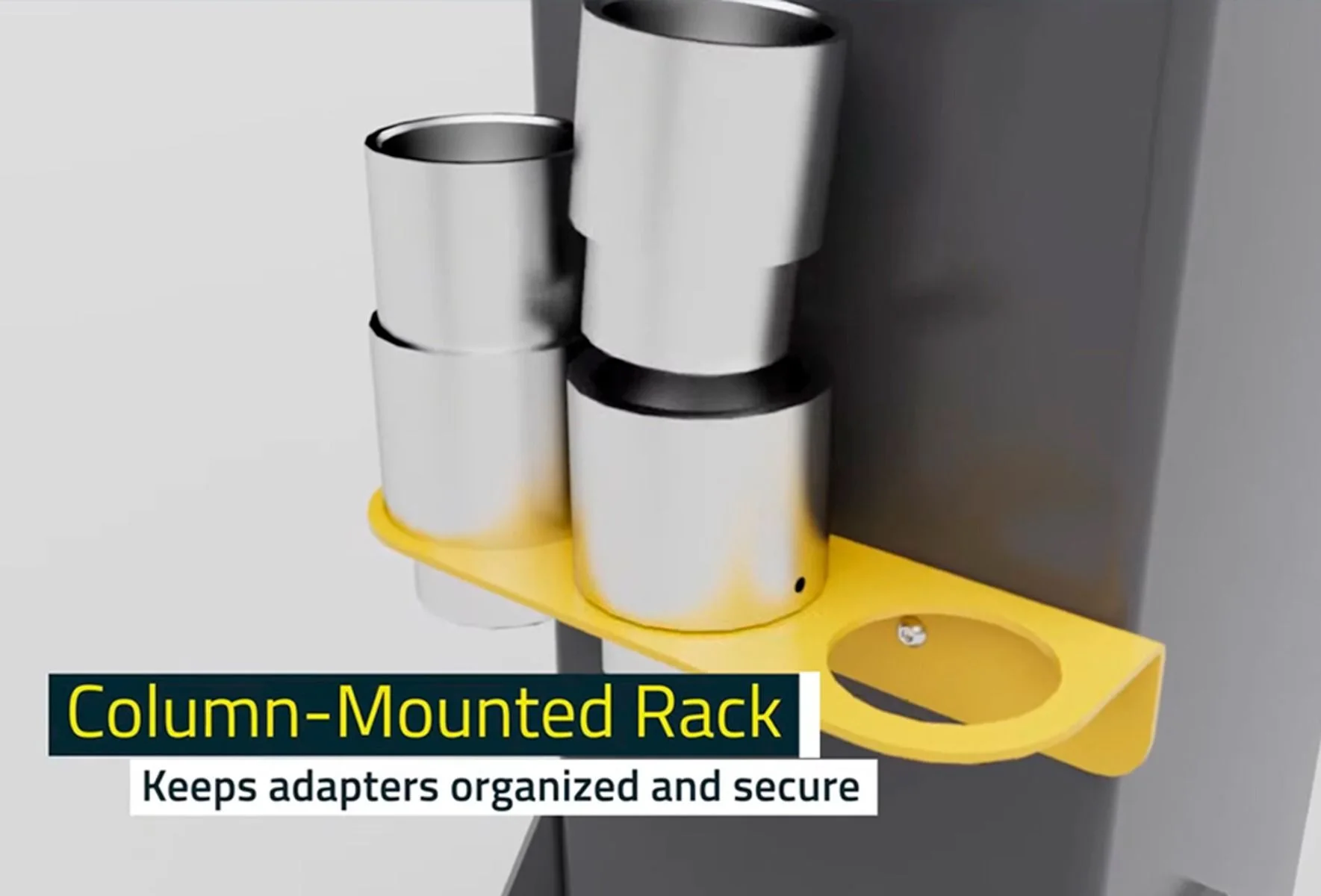

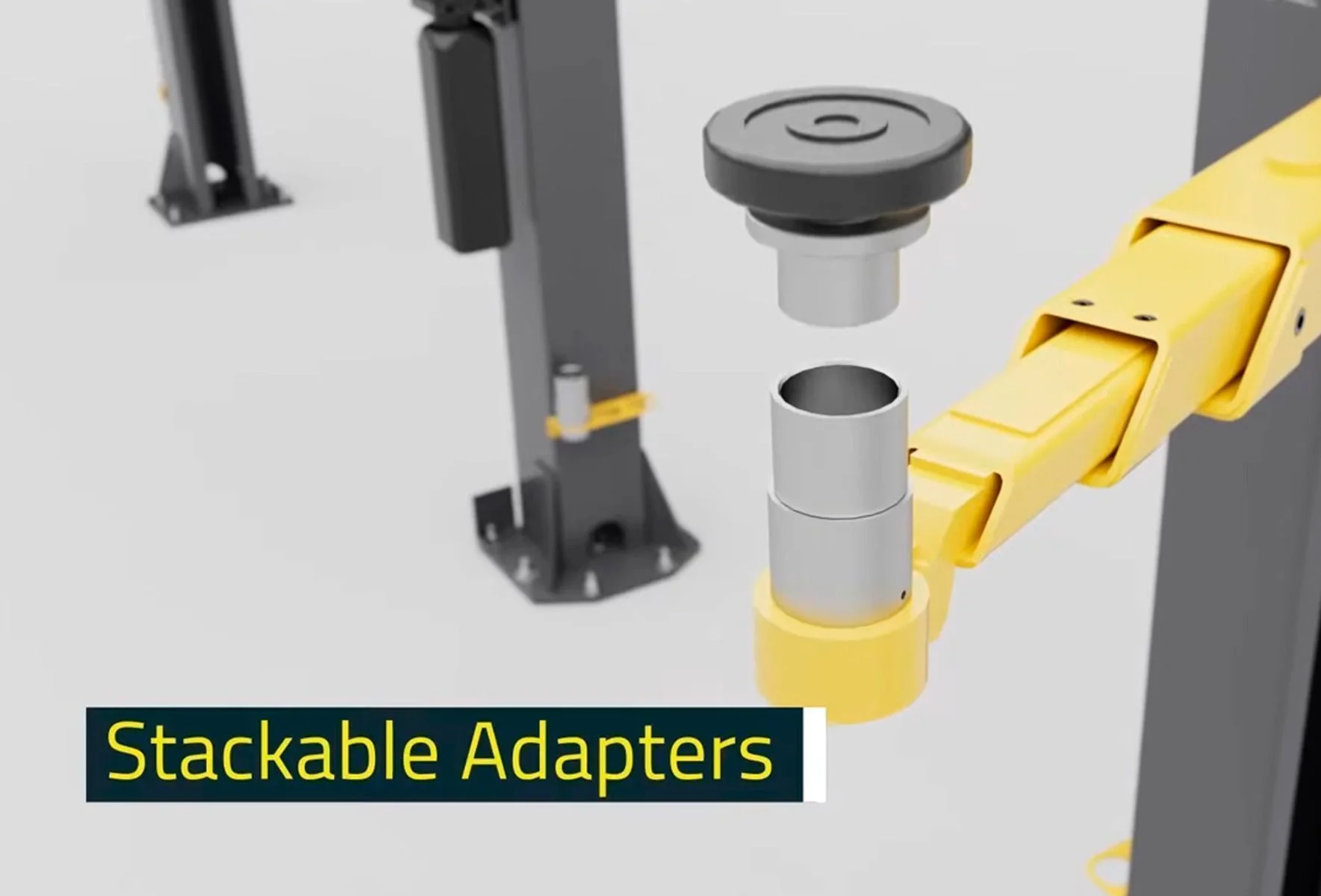

14-Piece Adapter Set: Comes standard with a comprehensive set of stackable adapters and polyurethane screw pads to handle any frame type.
Durable Finish: Coated in BendPak’s signature gunmetal gray powder coat for maximum corrosion resistance and a professional aesthetic.
Why Choose the BendPak 10AP?
The 10AP is designed for those who refuse to compromise on safety and adaptability. Its unique ability to be installed in wide or narrow configurations, combined with its nested arm technology, means it will never become obsolete. Whether you are lifting the latest EV or a classic heavy-duty truck, the BendPak 10AP provides the most secure and efficient lifting experience on the market
