KATOOL KT-H105 10000 lbs. Floor Plate Two Post Lift
Product Specifications
The Katool KT-H105 is a heavy-duty 10,000 lb. Floor Plate Two Post Lift engineered for the rigors of high-volume auto shops and serious enthusiasts. Combining a low-profile floor-plate design with industrial lifting power, this unit is the perfect solution for facilities with height restrictions that still need to lift heavy trucks and SUVs. Certified to meet global safety benchmarks, the KT-H105 delivers a "shop-ready" performance that prioritizes both vehicle protection and operator safety.
KEY FEATURES
CE Approved & Certified: Safety is guaranteed with rigorous testing, exceeding 115% dynamic and 150% static load benchmarks.
Low Ceiling Efficiency: With an overall height of just 110.9", this lift provides 10,000 lbs of muscle in a package that fits under standard garage ceilings.

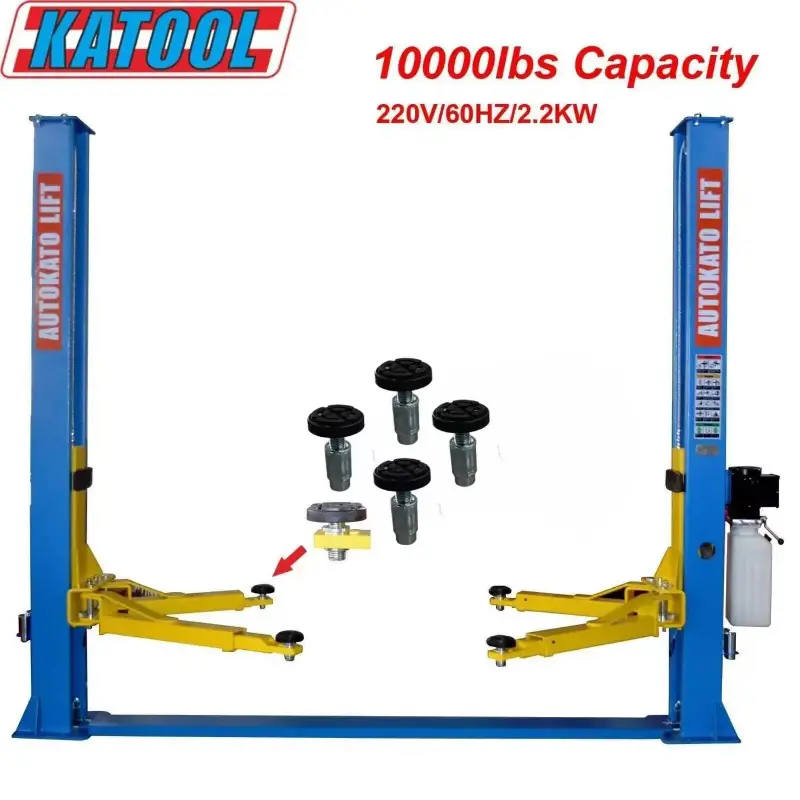

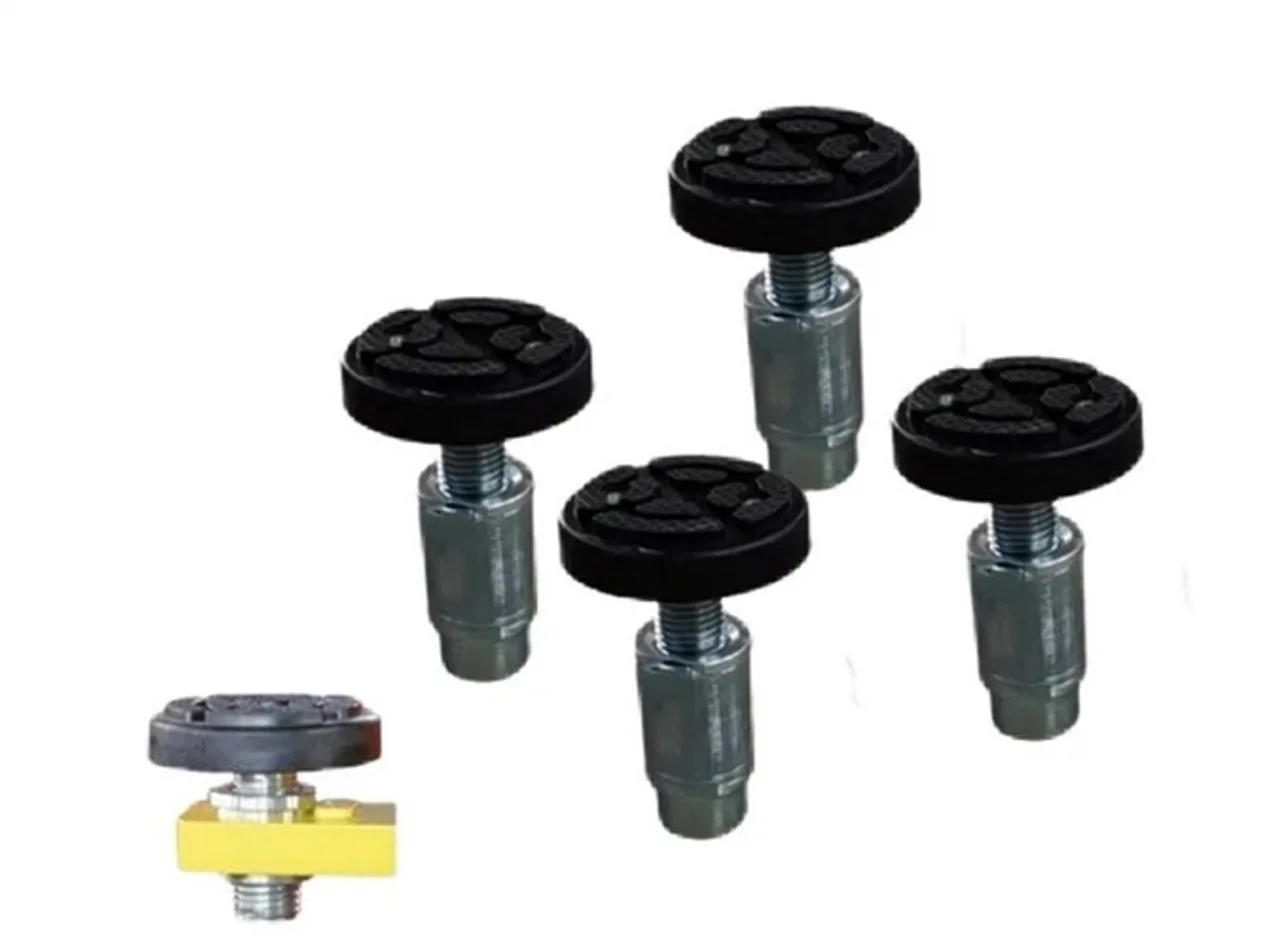

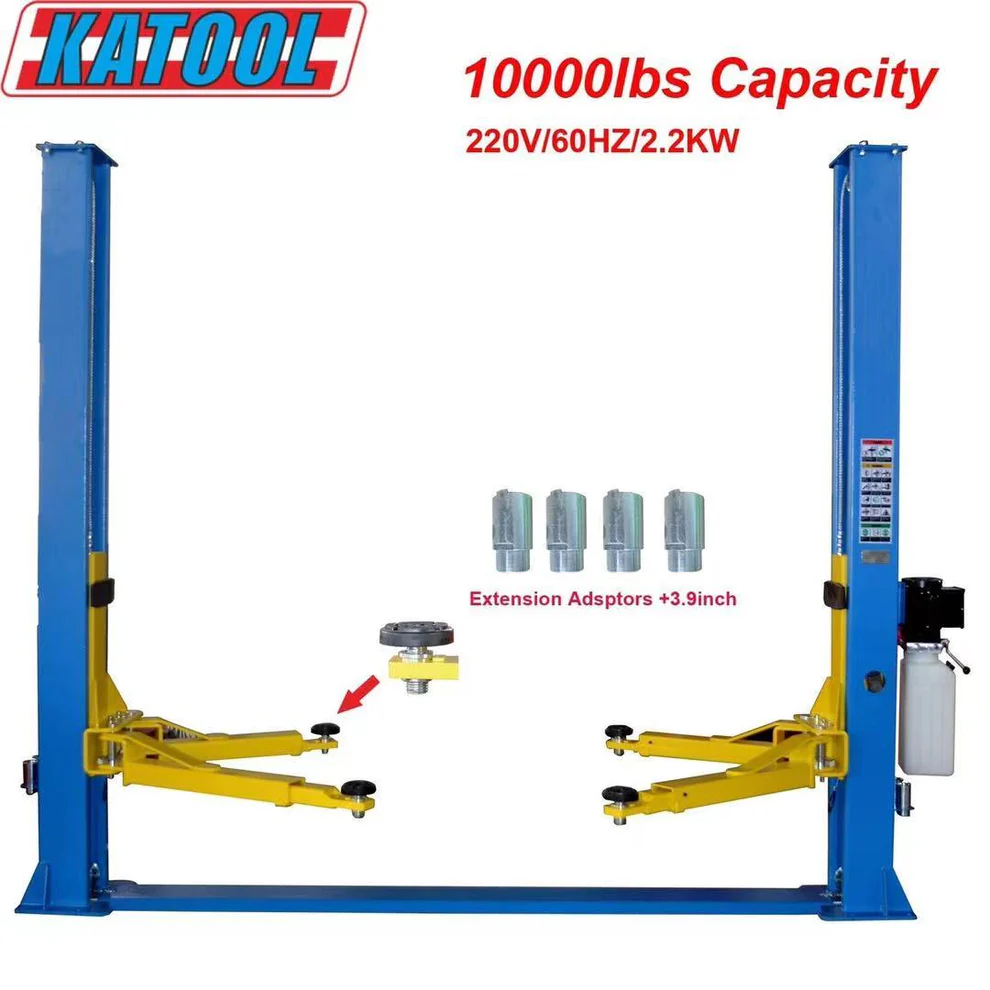

Superior Lifting Reach: Features a versatile arm spread (up to 58.2") and screw-on pads with +100mm extension adapters, making it easy to engage frame points on everything from low-profile cars to tall SUVs.
Reliable Power: Driven by a high-efficiency 2.2kW hydraulic system and dual chain-drive cylinders for smooth, consistent operation.
Vehicle Protection: Integrated rubber door guards and precision-engineered pads ensure the vehicle’s finish and side skirts remain undamaged during service.
Manual Safety System: Reliable two-side manual safety lock release provides total control and peace of mind during the lowering process.

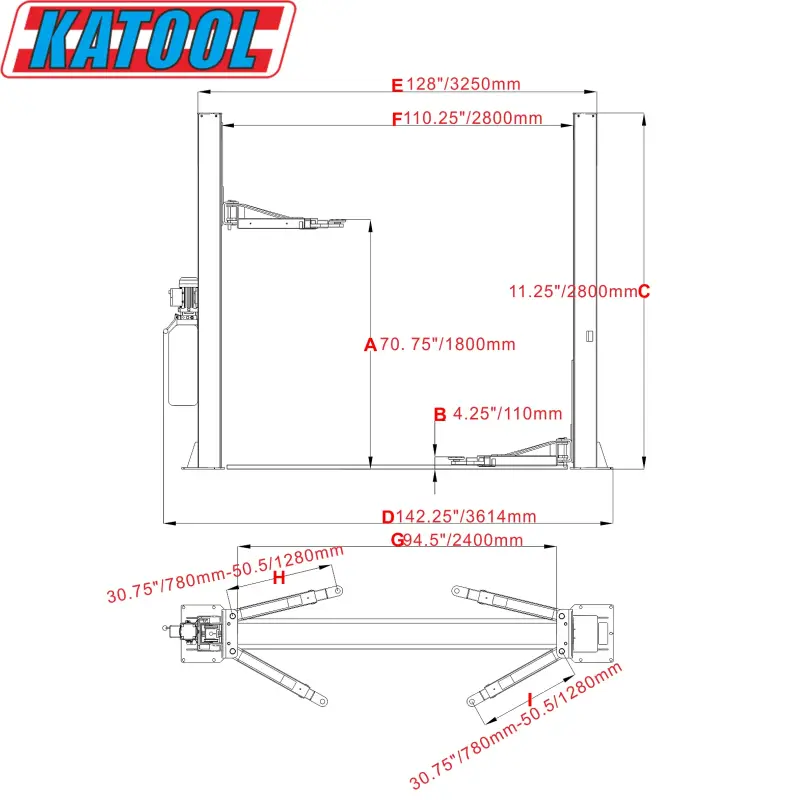

TECHNICAL SPECIFICATIONS
Lifting Capacity: 10,000 lbs (4,500 kg)
Overall Height: 110.9" (9' 3")
Max. Lifting Height: 70.8"
Minimum Pad Height: 3.9" (Low-profile ready)
Overall Width: 140.4"
Drive-Through Clearance: 98.4"
Motor: 220V / 60Hz / 1PH / 2.2kW
Net Weight: 1,256 lbs
INSTALLATION & SAFETY NOTICE
⚠ Floor Requirements: For safe operation, this lift MUST be installed on a level concrete surface with a minimum thickness of 5.9 inches (150mm) and a 3,000 PSI rating.
Site Selection: Ideal for garages needing clear top-space access for tall vehicles or overhead obstacles like heaters and lights.
Why Choose the Katool KT-H105?
The KT-H105 stands out as a globally certified workhorse. While many economy lifts skip independent safety certifications, Katool ensures every unit is load-tested for extreme conditions. It offers a 10,000 lb. rating in a floor-plate configuration, providing the perfect balance of "Heavy-Duty" power and "Small-Space" convenience.
