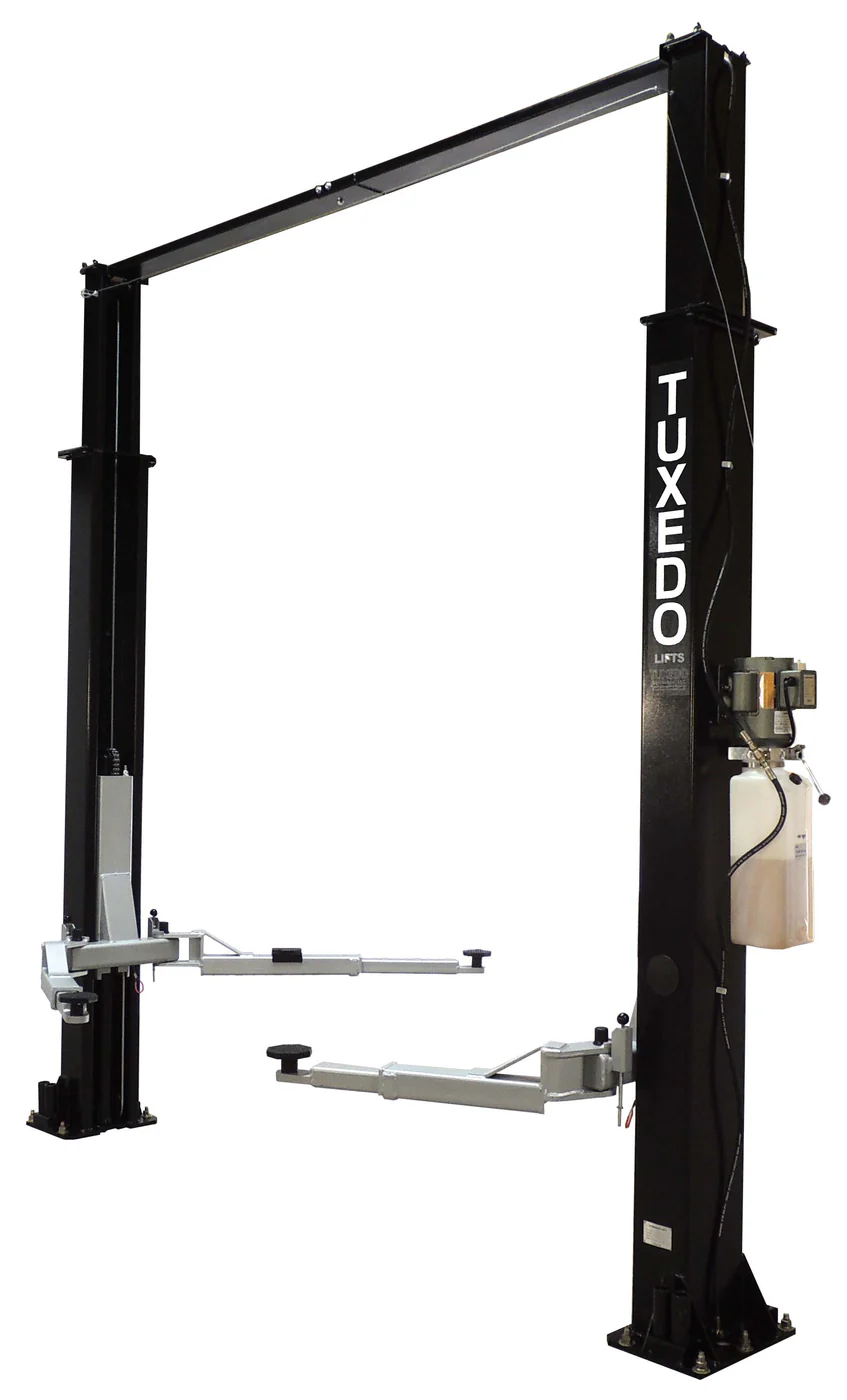

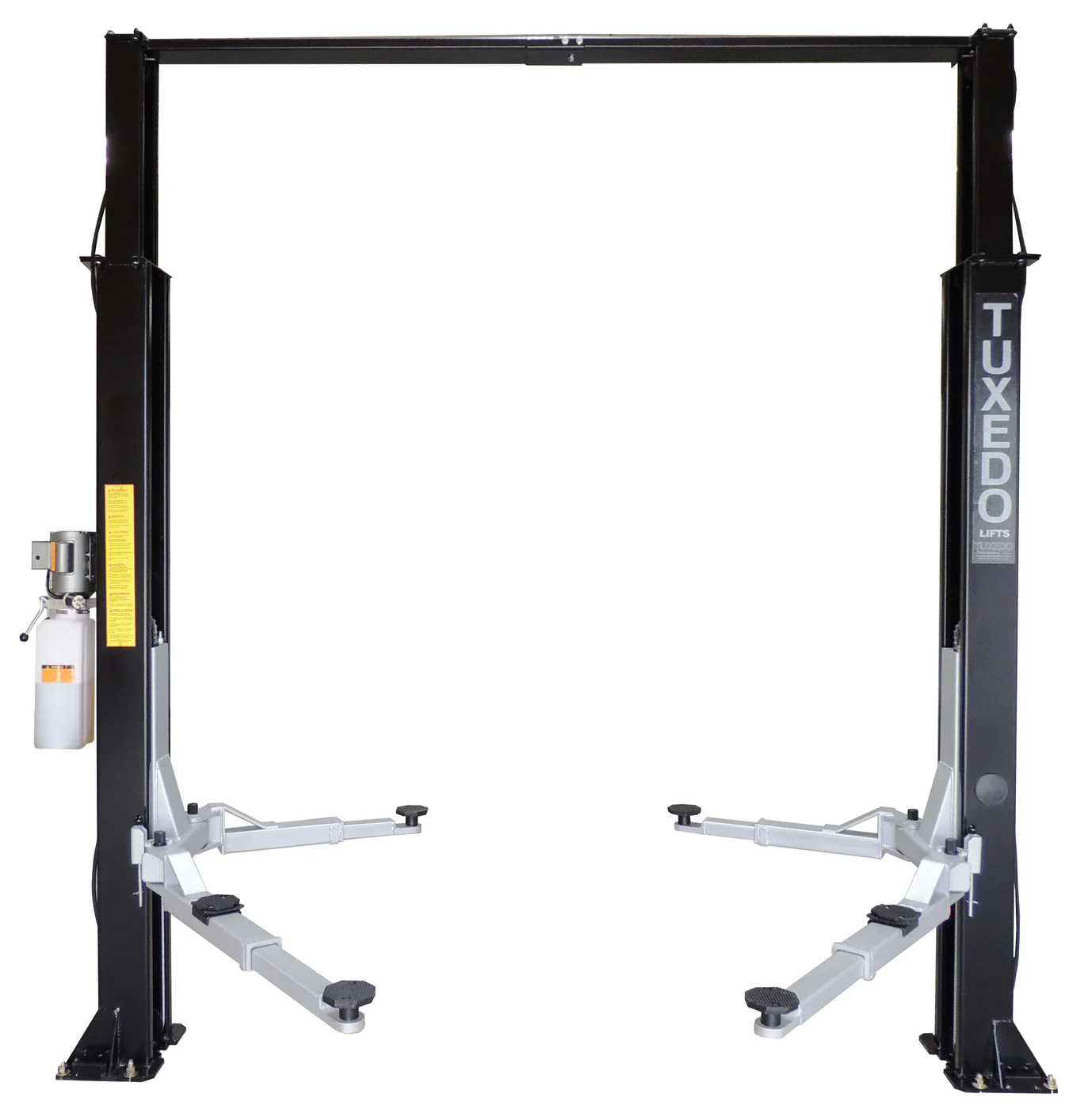

Tuxedo 9,000 lbs. Light Duty 2-Post Clear Floor - Asymmetric - TP9KAC-TUX
Product Specifications
The Tuxedo TP9KAC-TUX is a high-value, clear-floor lifting solution designed for those who need professional performance without the premium price tag. With a 9,000 lb. lifting capacity, this lift is perfect for independent repair shops and car enthusiasts. Its asymmetric arm design allows for better door clearance, making it easier to exit the vehicle once positioned, while the clear-floor configuration keeps your workspace free of floor obstructions for easy tool and oil drain movement.
KEY FEATURES

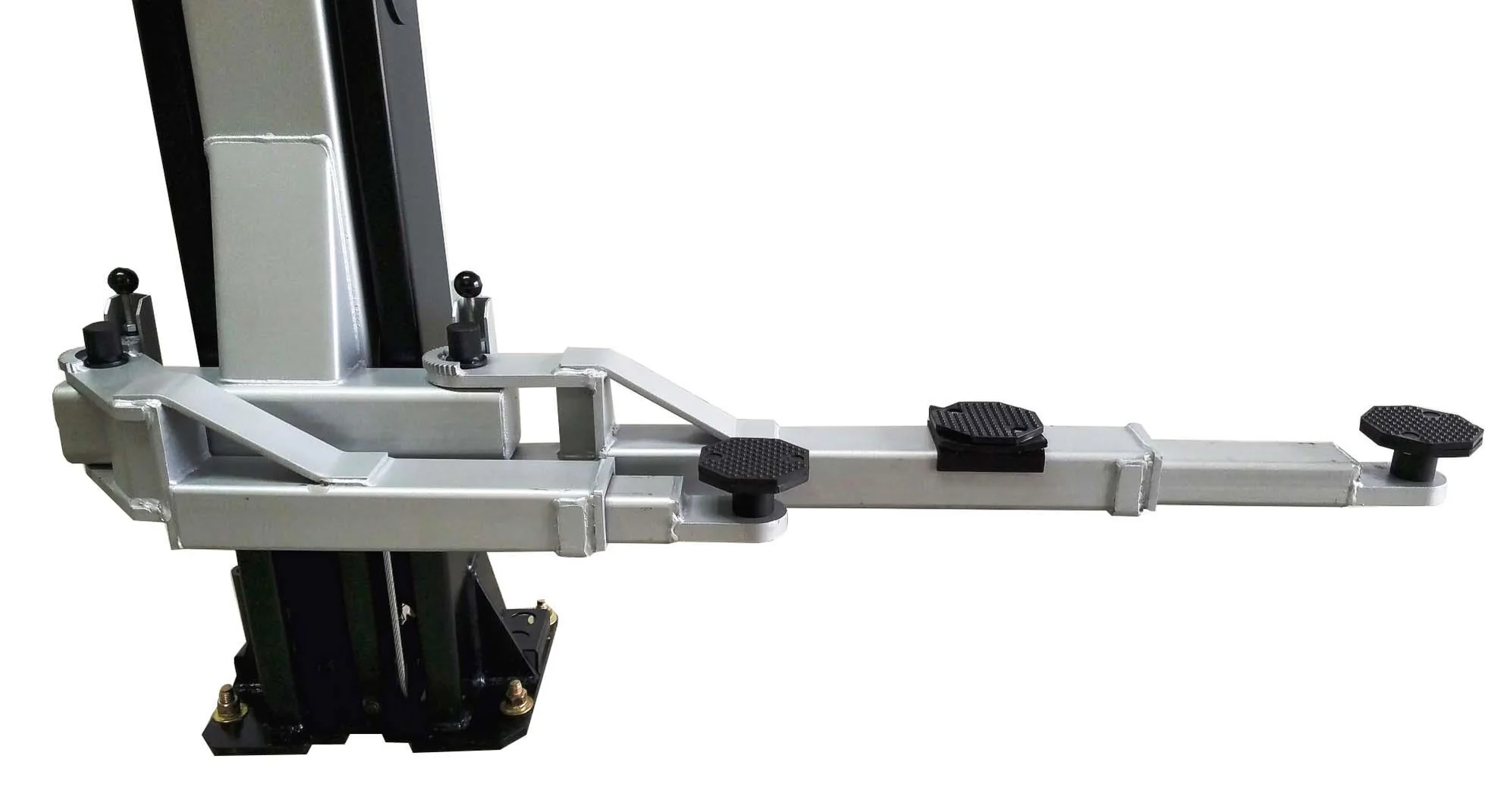

* Asymmetric Swing Arms: Optimized for passenger cars and light trucks, providing superior access to the vehicle interior.
* Clear Floor Design: Provides an unobstructed work area under the vehicle, ideal for transmission jacks and oil drains.
* Chain-Driven Reliability: Dual hydraulic cylinders and a heavy-duty chain system ensure smooth and consistent lifting.
* Safety First: Features an automatic arm restraint system and a dual-point carriage lock release for secure operation.

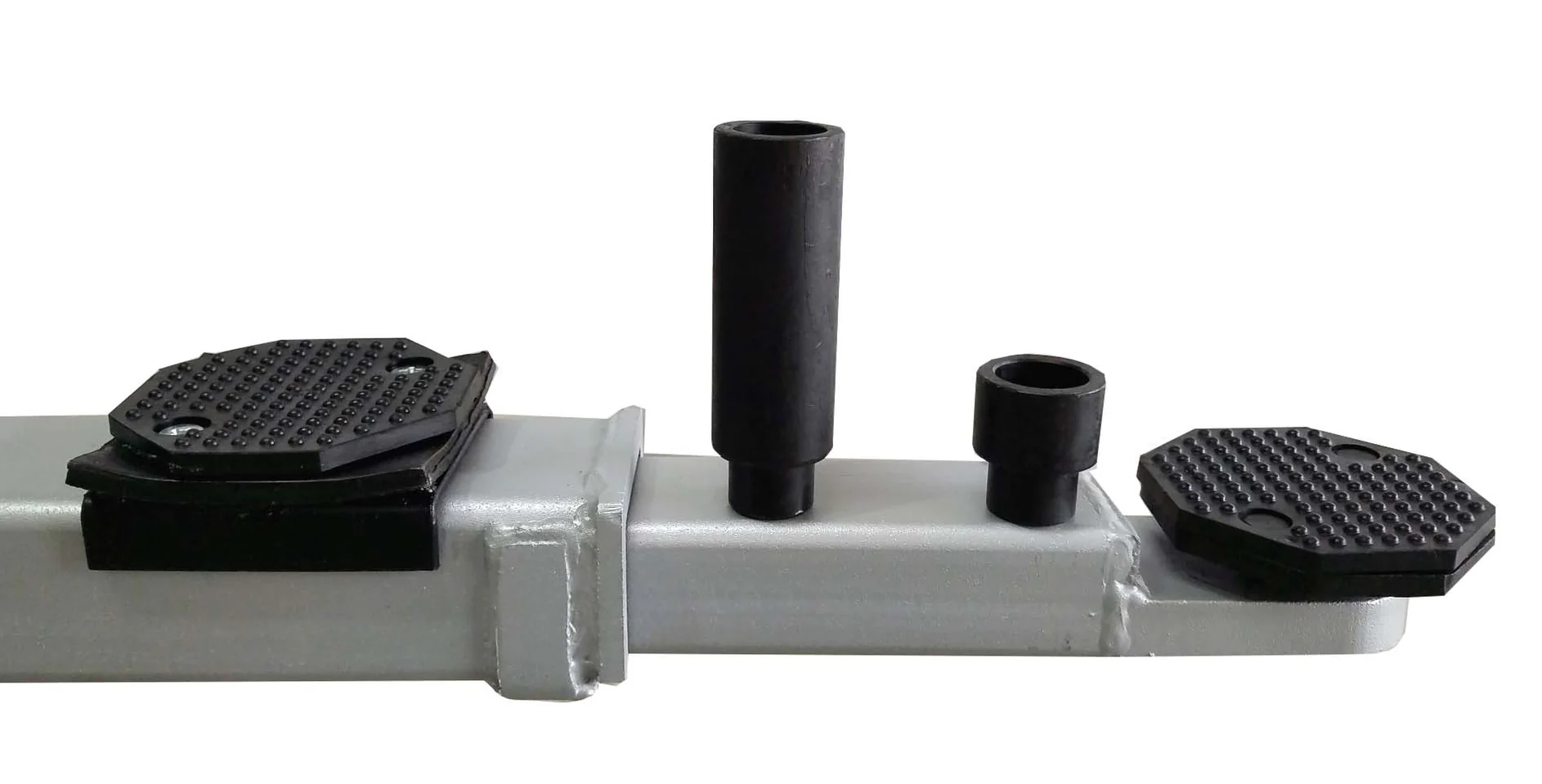

* Complete Adapter Kit: Comes standard with low-profile drop-in pads, saddle pad adapters, and stackable height adapters for various vehicle frames.
* Professional Finish: Finished with a durable black powder coat that resists chemicals and provides a sleek, modern look for your garage.

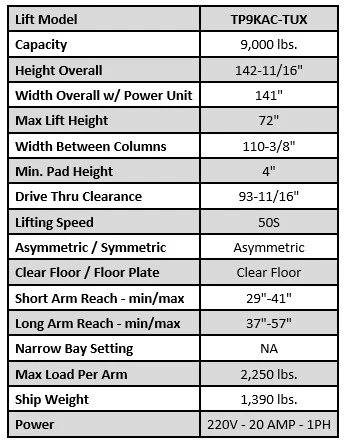

TECHNICAL SPECIFICATIONS
* Model: TP9KAC-TUX
* Lifting Capacity: 9,000 lbs

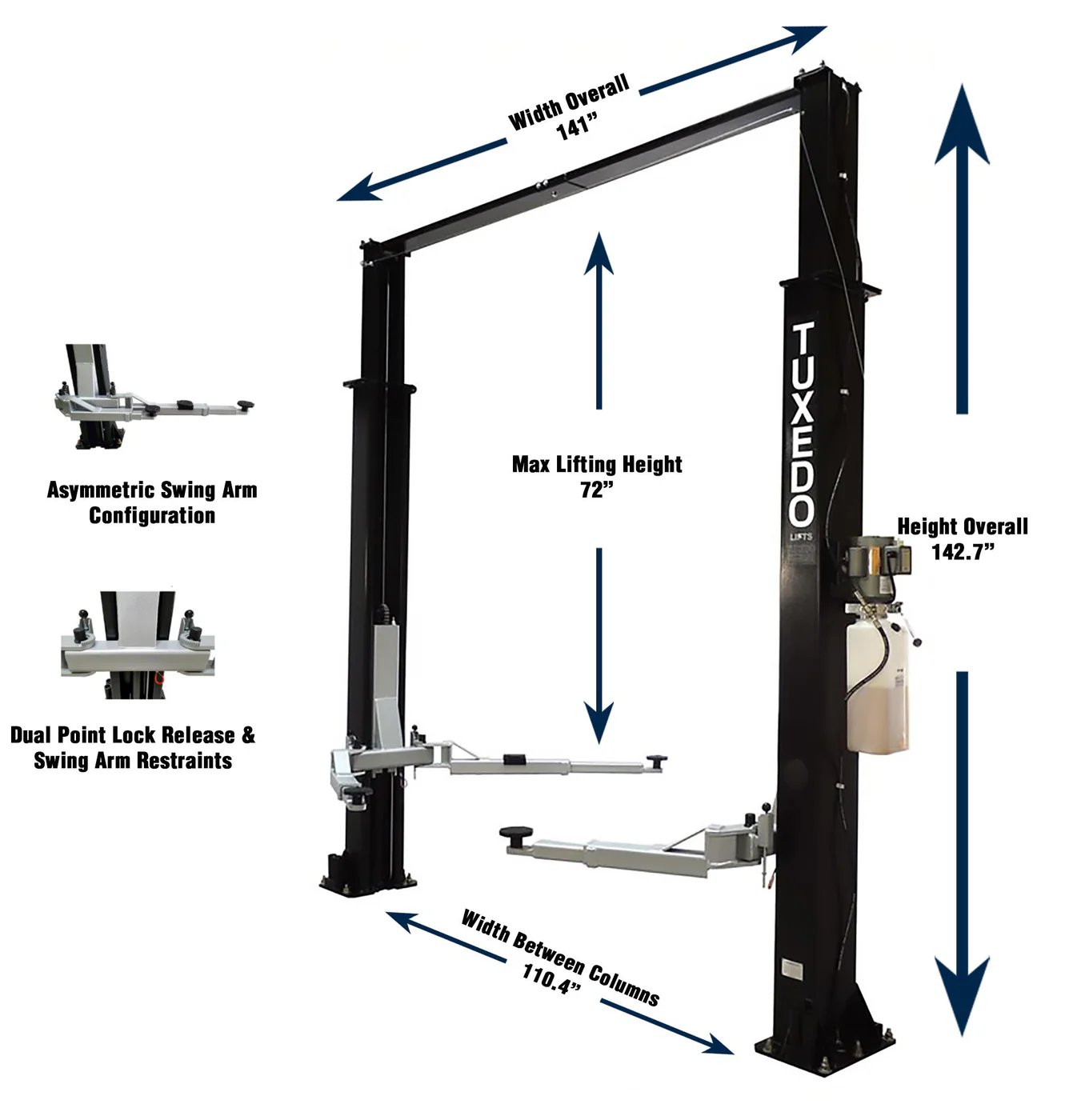

* Overall Height: 142-11/16" (Approx. 11.9 ft)
* Maximum Lift Height: 72"
* Width Between Columns: 110-3/8"
* Drive-Thru Clearance: 93-11/16"
* Lifting Speed: 50 Seconds
* Power Requirement: 220V / 20 Amp / 1PH
* Shipping Weight: 1,390 lbs
SHIPPING & INSTALLATION
UNITED STATES: Fast freight shipping. This unit features one-piece column construction for added stability and a more straightforward installation process.
UNITED KINGDOM: International shipping available. The 1,390 lb. shipping weight is professionally crated to protect the hydraulic system and columns during transit.
CEILING REQUIREMENT: Ensure your shop has a minimum ceiling height of at least 12 feet to accommodate the 142-11/16" overall height.
Why Choose the Tuxedo TP9KAC-TUX?
It is the "sweet spot" of the lifting world—offering the reliability of a commercial lift at a price that fits residential and small-business budgets. Whether you are doing routine brake jobs or full engine swaps, the TP9KAC-TUX provides the height, safety, and clearance you need to get the job done right.
