Atlas BP12000X Commercial Grade Baseplate 12,000 lb. Capacity 2 Post Lift
Product Specifications
PRODUCT OVERVIEW

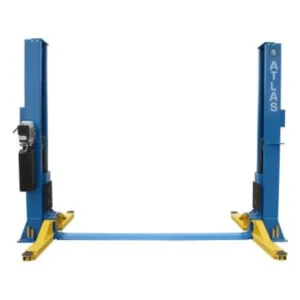

The Atlas® BP12000X is a commercial-grade, heavy-duty powerhouse designed for shops that need to lift serious weight but are restricted by ceiling height. With a massive 12,000 lb. lifting capacity, this baseplate (floor-plate) lift features oversized columns and symmetric three-stage arms to handle everything from heavy-duty pickups to large trailers. Its "Open-Top" design means there are no overhead obstructions, allowing you to lift even the tallest delivery vans or box trucks.
KEY FEATURES
Massive 12,000 lb. Capacity: Built specifically for commercial environments and heavy-duty vehicle service.

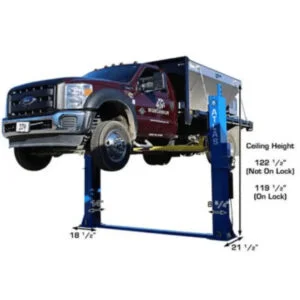

Low Ceiling Optimized: At only 122-1/2" tall, this lift fits into garages where overhead models simply cannot, while still offering professional lifting power.
Adjustable Width Settings: Can be installed at two different width configurations to accommodate wider vehicles or provide more "drive-thru" space.
3-Stage Symmetric Arms: Heavy-duty, triple-reach arms provide maximum flexibility to reach the lifting points on various frame lengths.

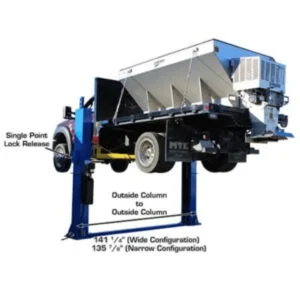

Single-Point Lock Release: Increases efficiency by allowing the technician to disengage all safety locks from a single column.
Commercial Grade Hydraulics: Dual hydraulic chain-over cylinders provide a smooth, powerful rise, supported by a durable powder-coat finish.
Complete Adapter Kit: Includes a FREE 12-piece truck adapter set to ensure you can handle any vehicle that comes through the door.
TECHNICAL SPECIFICATIONS
Model: BP12000X
Lifting Capacity: 12,000 lbs.
Overall Height: 122 1/2" (10' 2 1/2")
Max Lift Height (with adapters): 88 1/2"
Adjustable Floor Width: 149 3/8" or 154 1/2"
Drive-Thru Clearance: 103 5/8" or 109"
Steel Thickness: 6mm (Column)
Power Requirement: 220V Single Phase (30 Amp breaker recommended)
Shipping Weight: 2,130 lbs.
Warranty: 5-Year Structural / 2-Year Hydraulic (Parts Only)
INSTALLATION & FLOOR REQUIREMENTS
Concrete Specs: Requires a minimum of 6" of concrete with a 3,000 PSI rating.
Hardware: All mounting hardware is included for a straightforward setup.
Fluid Requirement: 3-5 Gallons of AW32 or AW46 hydraulic oil (not included).
Why Choose the Atlas® BP12000X?
The BP12000X is the ultimate "Truck Lift" for shops with standard ceilings. It combines the heavy-duty structural integrity of a 12k lift with the convenience of a baseplate design. If your business services commercial fleets, heavy pickups, or modified trucks, this lift provides the stability and clearance necessary to work safely and efficiently.
