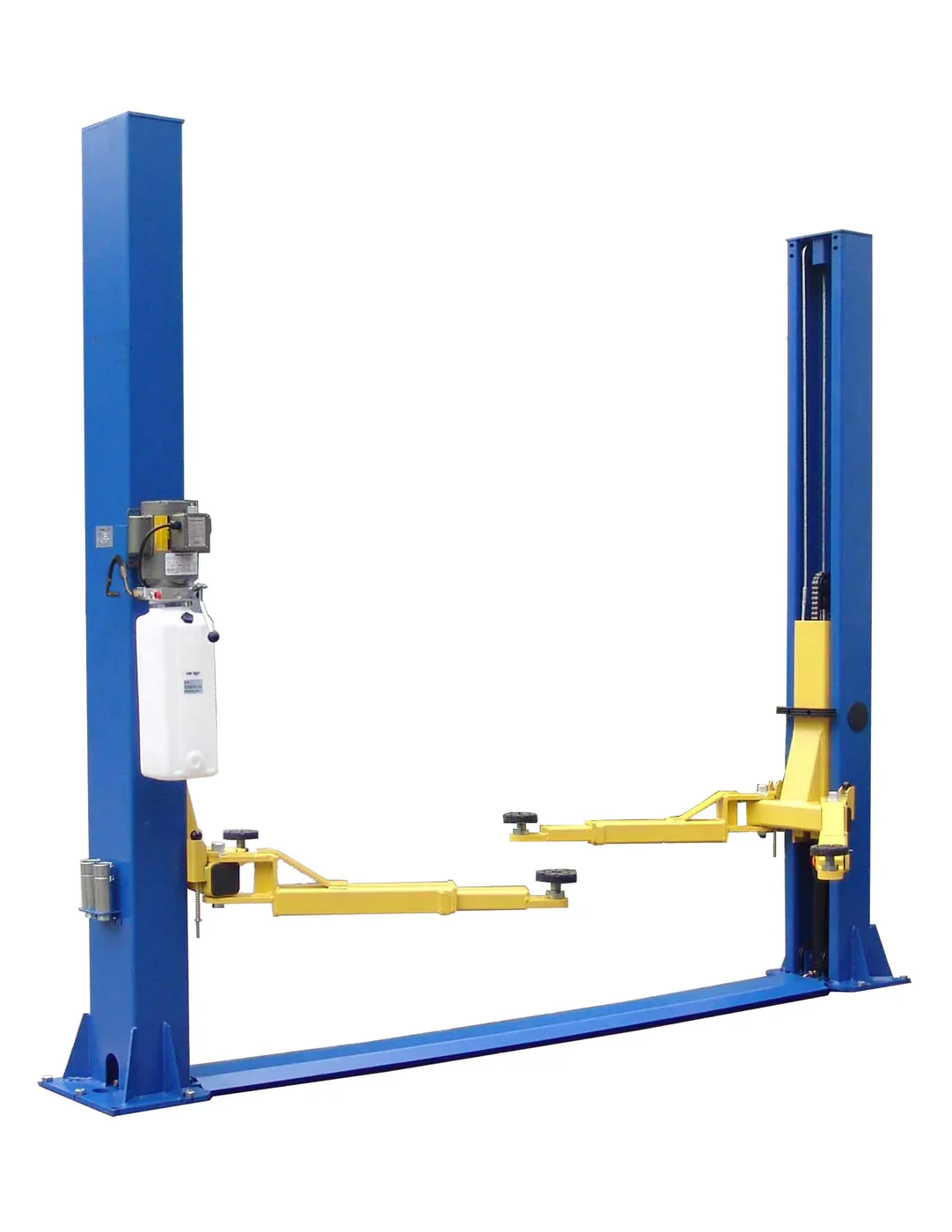

Tuxedo Light Duty 9,000 lbs. 2-Post Lift Floor Plate - Symmetric - TP9KFX
Product Specifications
The Tuxedo TP9KFX is a reliable and economical floor-plate lifting solution designed for shops and residential garages with lower ceiling clearances. Unlike clear-floor models, this 9,000 lb. capacity lift features an "Open Top" design, allowing you to lift taller vehicles without being restricted by an overhead bar. With its symmetric arm configuration and heavy-duty chain drive, it provides a stable and balanced lift for passenger cars, SUVs, and light-duty trucks.
KEY FEATURES
Low Ceiling Optimized: The floor-plate (base-plate) design is perfect for facilities that cannot accommodate a tall overhead structure.
Symmetric Swing Arms: Balanced arm design ensures equal weight distribution, ideal for a wide variety of standard-wheelbase vehicles.
Heavy-Duty Chain Drive: Dual hydraulic cylinders combined with a reliable chain system deliver consistent, smooth lifting power.
Smart Safety Features: Equipped with an automatic arm restraint system and dual-point carriage lock releases for secure operation.
Low-Profile Access: Features 4” low-profile spin-up pads, making it easy to position under vehicles with lower ground clearance.
Protective Design: Includes rubber door guards to prevent damage when exiting the vehicle and internal hose routing for a cleaner look and added protection.

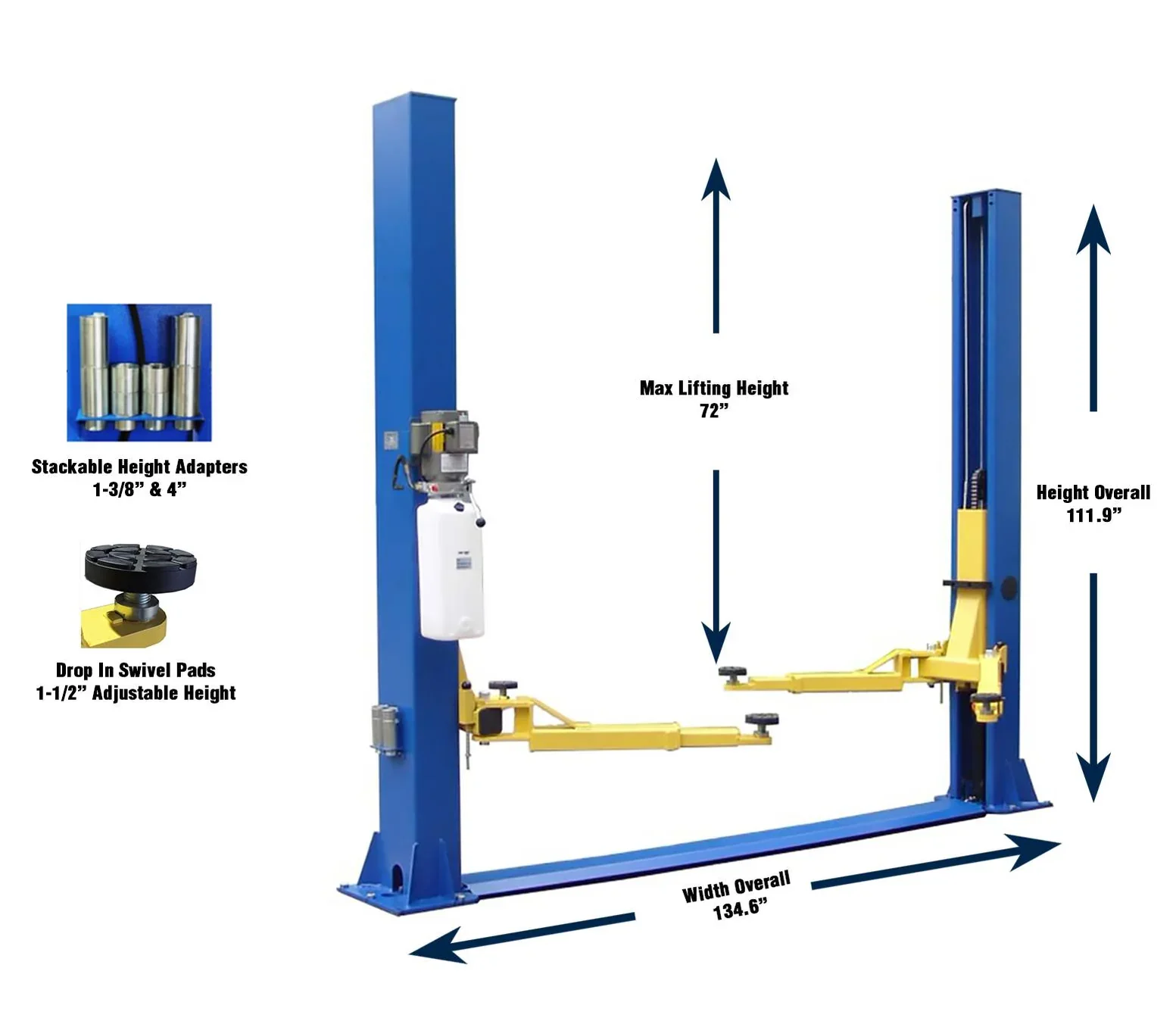

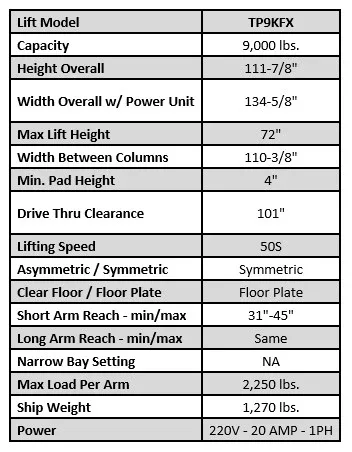

TECHNICAL SPECIFICATIONS
Model: TP9KFX (TP9KF-TUX)
Lifting Capacity: 9,000 lbs
Design: Floor Plate / Symmetric

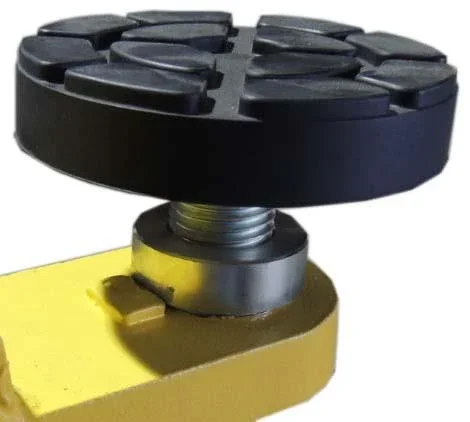

Lifting Pads: 4" Low Profile Spin-Up
Drive System: Chain Driven / Dual Hydraulic Cylinders
Finish: Durable Powder-Coat

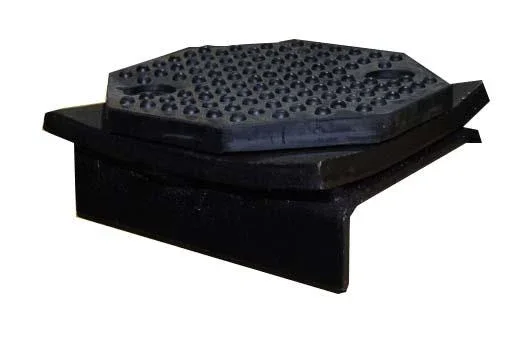

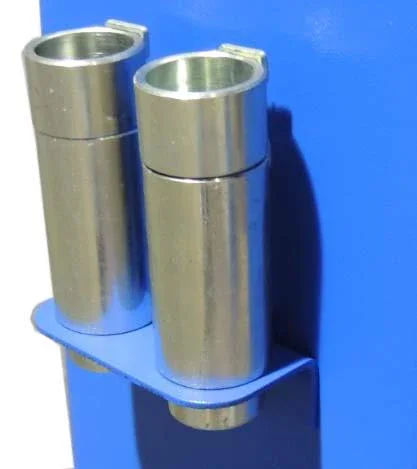

Included Accessories: Stackable Height Adapters & Saddle Pad Adapters
Power Requirement: 220V / 20 Amp / 1PH
SHIPPING & INSTALLATION
UNITED STATES: Efficient freight shipping available. This unit is popular for "DIY" garage installs due to its straightforward floor-plate design.

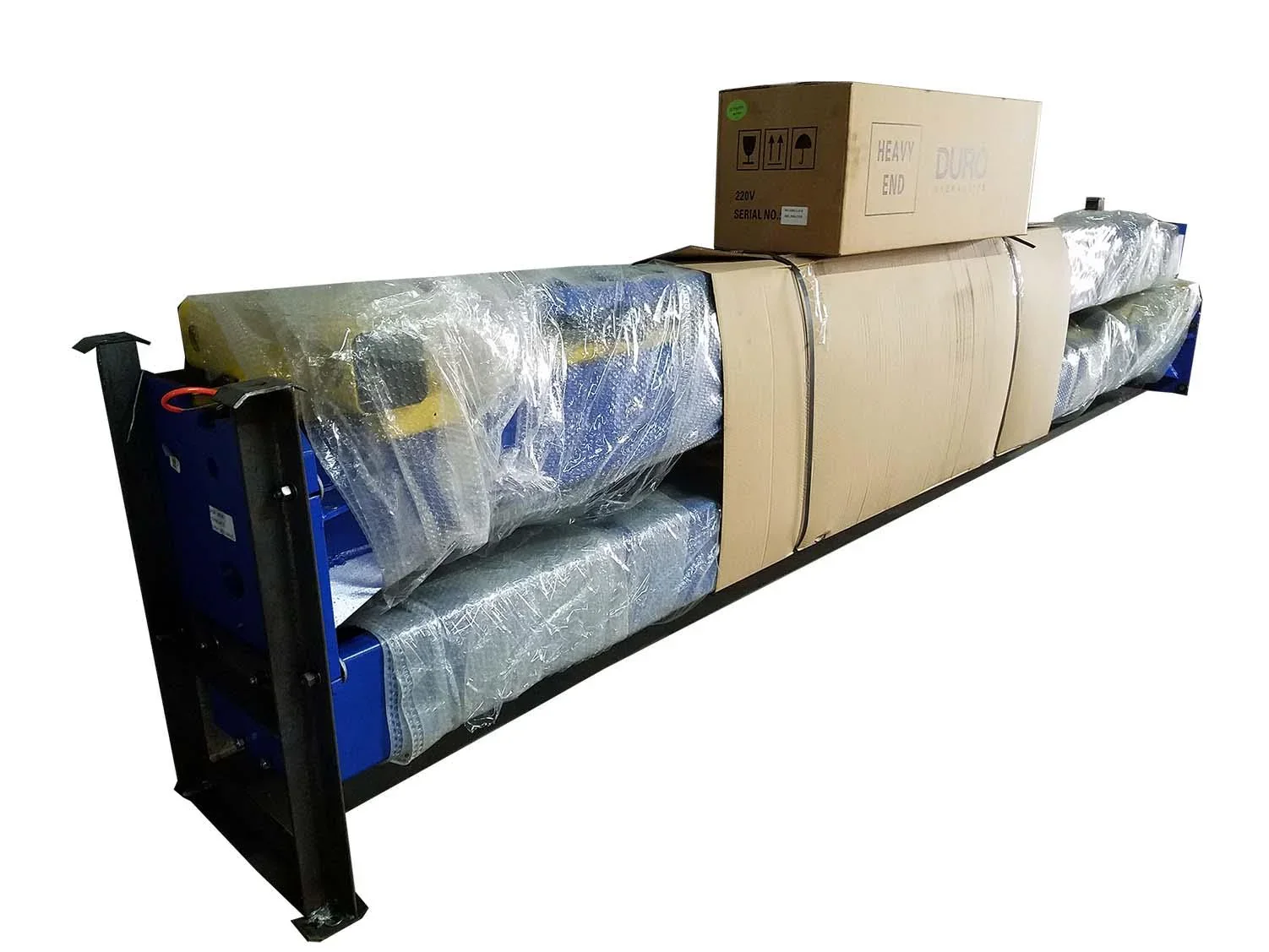

UNITED KINGDOM: International delivery supported. All components are securely crated to ensure the one-piece columns and hydraulic lines arrive intact.
VERSATILE PLACEMENT: The lack of an overhead bar makes this the most flexible 2-post lift for residential garages with 10ft or 12ft ceilings.
Why Choose the Tuxedo TP9KFX?
The TP9KFX is the ultimate problem-solver for garages with low ceilings. It offers the same 9,000 lb. commercial-grade power as taller models but in a format that fits almost anywhere. It’s a high-value, durable investment that prioritizes accessibility and ease of use without breaking the bank.
