Atlas 9KBPX 9,000 lb Baseplate 2 Post Vehicle Lift
Product Specifications
The Atlas® 9KBPX is the gold standard for versatility in low-ceiling environments. Specifically engineered for professional shops and home garages alike, this 9,000 lb. capacity baseplate lift stands at a total height of only 111-1/2". This compact design allows it to be installed in spaces with ceilings as low as 9' 6", providing professional lifting power where overhead lifts simply won't fit. Whether you are "Mr. Homeowner" looking to maintain your collection or a small shop servicing cars and SUVs, the 9KBPX offers the perfect blend of safety and value.
KEY FEATURES
Low Ceiling Specialist: At just 9' 3-1/2" tall, this lift fits into almost any standard garage, transforming your home space into a professional service bay.

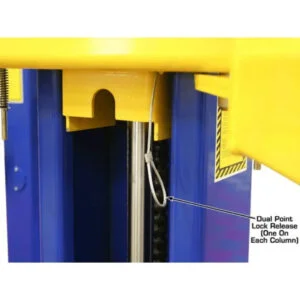

Secondary Lock System (SLS): Safety is paramount; the SLS is a spring-loaded system that automatically engages to secure the carriage in the unlikely event of chain slack or failure.
Open-Top Design: No overhead obstructions mean you can lift vehicles as high as your ceiling allows without worrying about a crossbar.
Reliable Dual Chain-Drive: High-strength "chain over roller" cylinders provide smooth, consistent lifting for passenger cars and light-duty trucks.

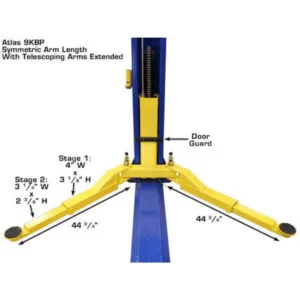

Automatic Arm Restraints: Geared arm restraints lock into position automatically as the lift rises, ensuring the arms stay exactly where you set them.

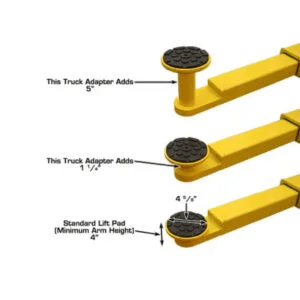

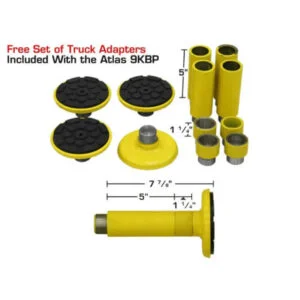

Free Adapter Kit: Includes a FREE 8-piece truck adapter set, allowing you to safely reach the frame points on SUVs and light pickups.
TECHNICAL SPECIFICATIONS
Model: XH-9KBPX
Lifting Capacity: 9,000 lbs.

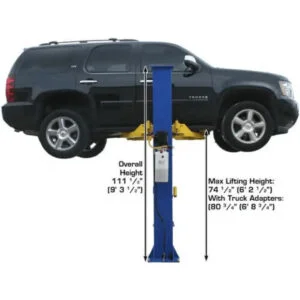

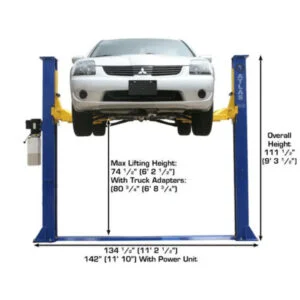

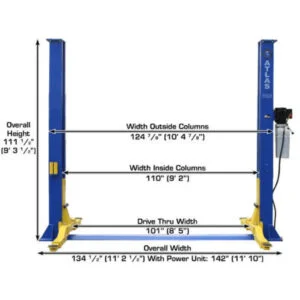

Overall Height: 111 1/2" (9' 3 1/2")

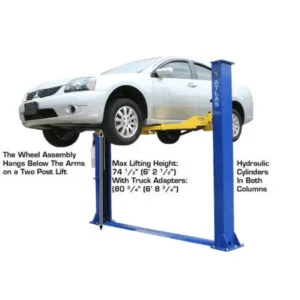

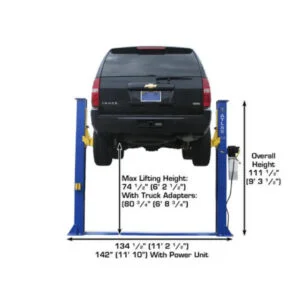

Max Lift Height (with adapters): 81"
Drive-Thru Clearance: 101"
Steel Thickness: 5mm (Industrial Grade)
Inside Column Width: 110"

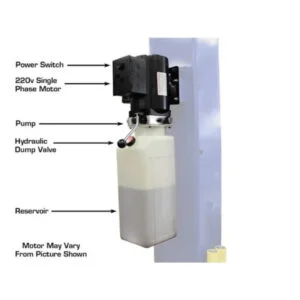

Power Requirement: 220V Single Phase (30 Amp breaker)
Shipping Weight: 1,400 lbs.
Warranty: 2-Year Structural / 1-Year Hydraulic (Parts Only)
INSTALLATION & REQUIREMENTS
Concrete: Requires a minimum of 4" of concrete with a 3,000 PSI rating.
Ideal For: Passenger cars, SUVs, and light-duty trucks (Note: Not recommended for Diesel Duallys or extra-long wheelbase vehicles).
Hardware: All mounting hardware is included for a fast and secure installation.
Why Choose the Atlas® 9KBPX?
The 9KBPX is the ultimate "Garage Friendly" lift. It bridges the gap between light-duty hobbyist equipment and heavy-duty commercial machinery. By choosing this lift, you get Atlas® commercial-grade reliability in a package designed to fit in a residential garage. It’s the smart investment for anyone looking to perform their own oil changes, brake jobs, or restorations in a confined space.
