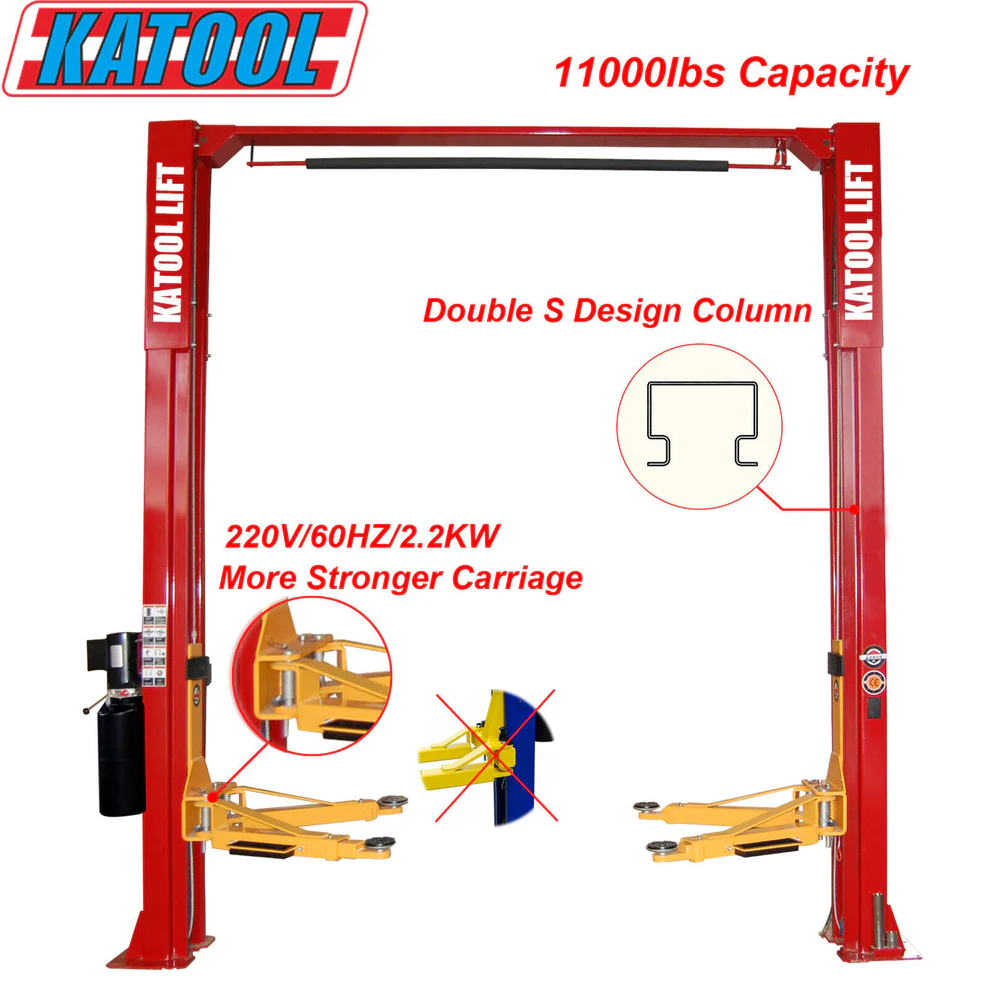

KATOOL KT-M110 11000 lbs. Clear Floor Two Post Lift
Product Specifications
The Katool KT-M110 is a premium 11,000 lb. Clear Floor Two Post Lift engineered for shops that require "Serious Power" and an unobstructed workspace. With its increased lifting capacity, this unit easily handles heavy-duty pickups, full-size SUVs, and commercial vans. The clear-floor design allows for a clean, professional look while providing a completely open floor area for moving toolboxes, oil drains, and equipment under the vehicle without any floor plate interference.
KEY FEATURES
11,000 lb. Heavy-Duty Capacity: Specifically designed for larger vehicles, making it the perfect upgrade for busy service centers.
Open Floor Efficiency: The overhead structure provides a completely clear workspace, allowing for seamless movement and easy floor cleaning.
CE Global Certification: Rigorously tested at 115% dynamic and 150% static load capacities, exceeding industry safety standards.
Advanced Vehicle Protection: Includes an overhead safety shutoff bar to prevent roof damage, rubber door guards, and foot protection guardrails on the carriages.

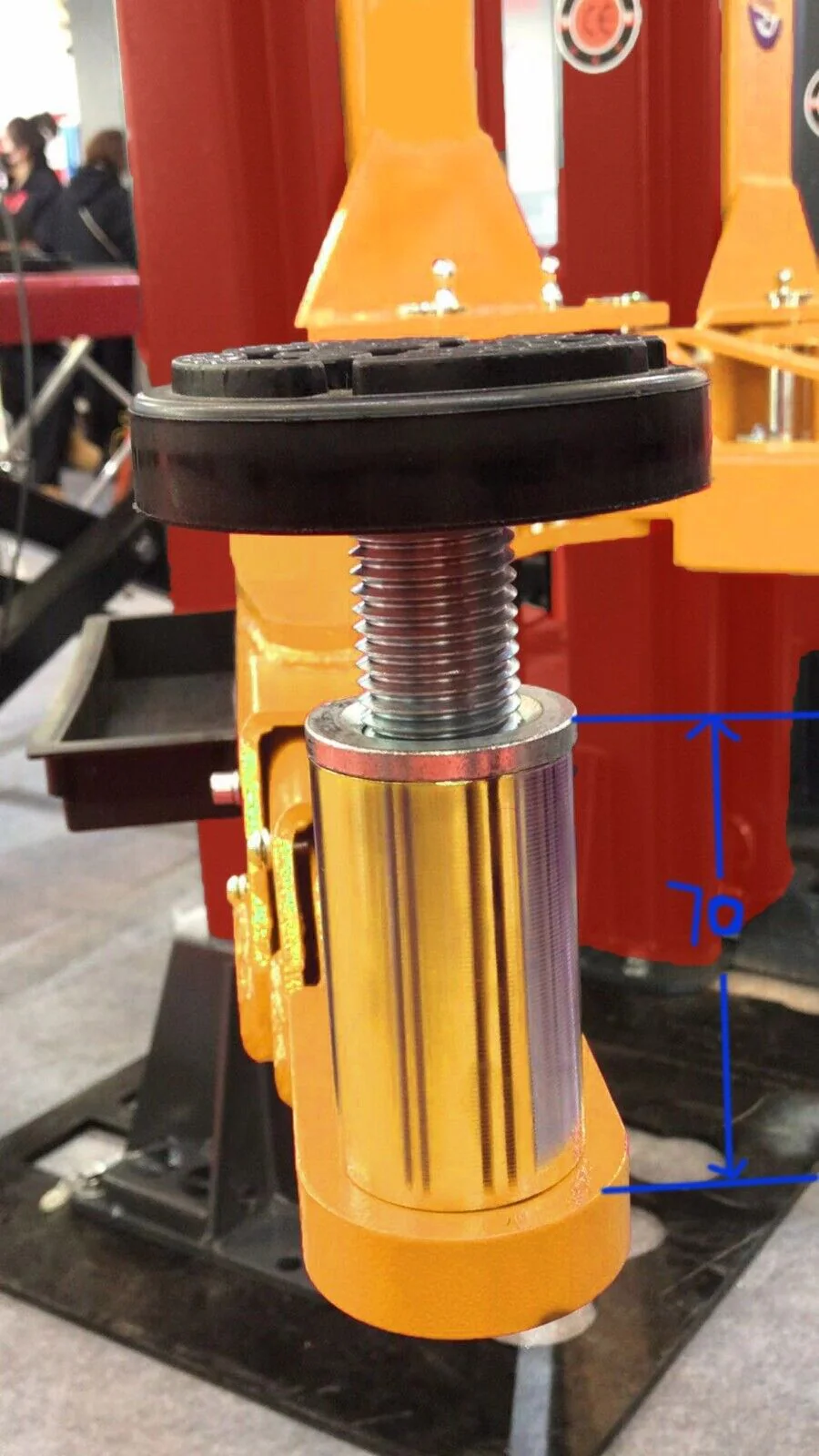

Versatile Adapter Kit: Comes standard with +30mm and +120mm extension adapters, ensuring you can safely reach the frame points on deep-chassis trucks.
Symmetric Arm Stability: Front and rear arms (up to 50.5" reach) provide a balanced lifting center, ideal for heavy, long-wheelbase vehicles.
Flexible Power: High-efficiency 2.2kW motor (standard 220V) with a dual-side manual safety lock release for total operator control.

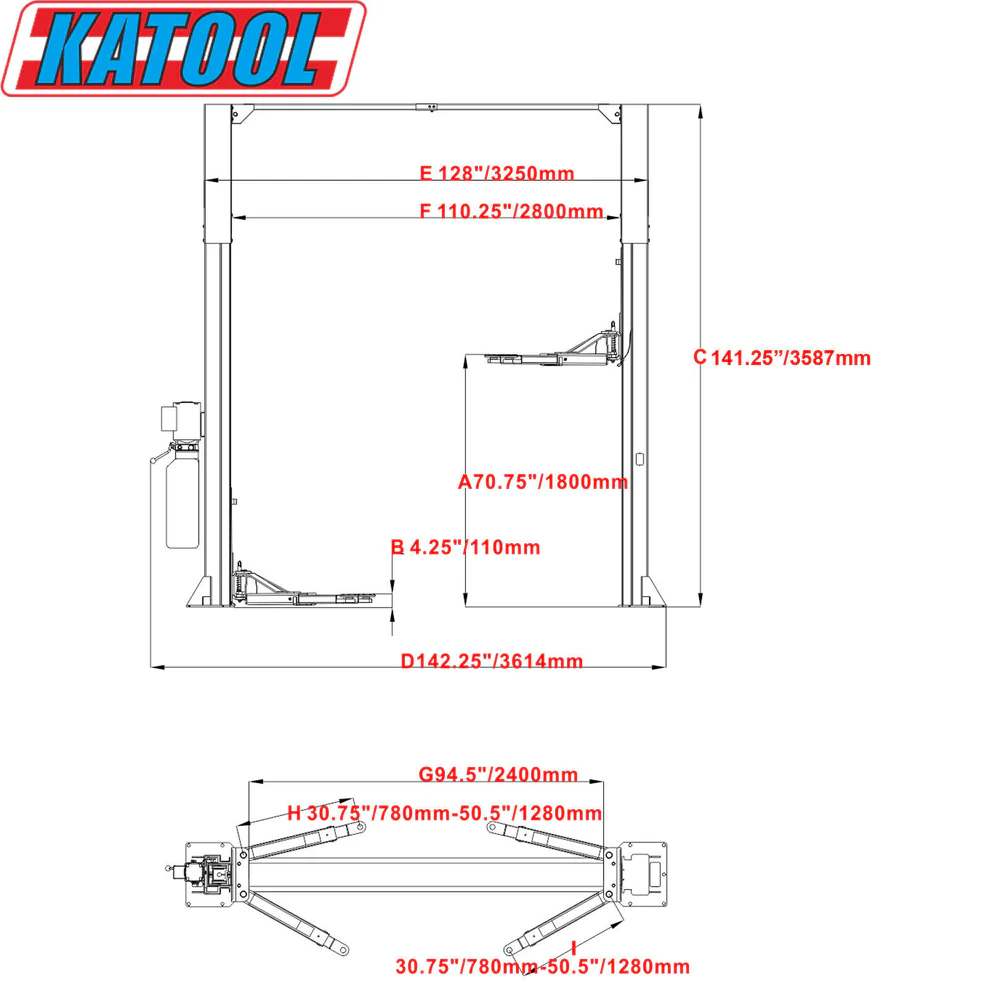

TECHNICAL SPECIFICATIONS
Lifting Capacity: 11,000 lbs (5,000 kg)
Overall Height: 141.25" (11' 9")
Max. Lifting Height: 70.75"
Minimum Height: 4.25"
Inside Column Width: 110.25"
Drive-Through Clearance: 94.5"
Arm Reach (Front/Rear): 30.75" – 50.5"
Net Weight: 1,367 lbs
INSTALLATION & SITE REQUIREMENTS
⚠ Concrete Requirement: To support 11,000 lbs, this lift MUST be installed on a level concrete surface at least 5.9" thick (150mm) with a 3,000 PSI rating.
Ceiling Clearance: Ensure a minimum overhead clearance of 142" to accommodate the overhead structure and shutoff bar.
Why Choose the Katool KT-M110?
The KT-M110 is the workhorse of the Katool lineup. It provides that extra 1,000 lbs of muscle over standard 10k lifts, giving you the confidence to service heavier fleet vehicles. Combined with its professional clear-floor design and integrated toolbox, it is an investment in both shop safety and high-level productivity.
